Texas Instruments
SCAN921025HSMX/NOPB
SCAN921025HSMX/NOPB
Regular price
$3.05 USD
Regular price
Sale price
$3.05 USD
Unit price
per
Couldn't load pickup availability
SCAN921025HSMX/NOPB Texas Instruments - Yeehing Electronics
High temperature 20 to 80-MHz 10-bit serializer with IEEE 1149.1 test access
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 8.011 |
| 100 — 249 | 6.531 |
| 250 — 999 | 5.133 |
| 1,000 + | 3.05 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Serializers & Deserializers - Serdes |
| RoHS | Y |
| Data Rate | 800 Mb/s |
| Input Type | LVCMOS, LVTTL |
| Operating Supply Voltage | 3.3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |

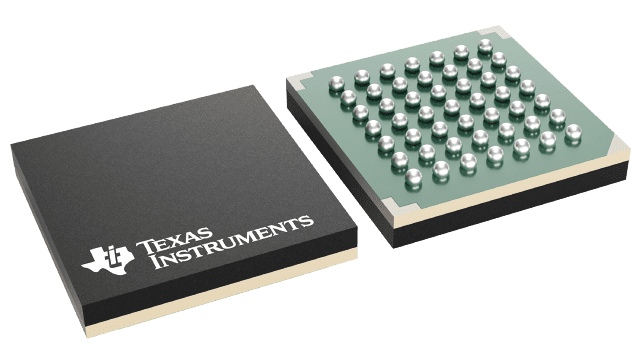

| Package / Case | FBGA-49 |
| Packaging | Reel |
| Height | 1.04 mm |
| Length | 7 mm |
| Series | SCAN921025H |
| Width | 7 mm |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 105 mA |
| Pd - Power Dissipation | 1.47 W |
| Product Type | Serializers & Deserializers - Serdes |
| Factory Pack Quantity | 2000 |
| Subcategory | Interface ICs |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 3 V |
| Unit Weight | 0.014110 oz |
For more information, please refer to datasheet
Documents
| SCAN921025HSMX/NOPB Datasheet |
More Information
The SCAN921025H transforms a 10-bit wide parallel LVCMOS/LVTTL data bus into a single high speed Bus LVDS serial data stream with embedded clock. The SCAN921226H receives the Bus LVDS serial data stream and transforms it back into a 10-bit wide parallel data bus and recovers parallel clock.
