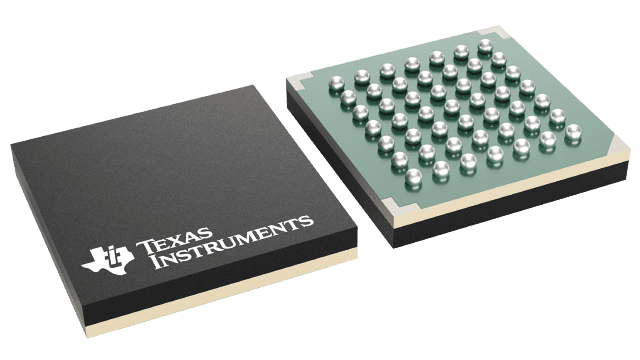

SCAN921226HSM/NOPB


YeeHing #: Y007-SCAN921226HSM/NOPB
Inventory: 7000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

SCAN921226HSM/NOPB Texas Instruments - Yeehing Electronics

High temperature 20 to 80-MHz 10-bit deserializer with IEEE 1149.1 test access

Pricing (USD)

Quantity Unit Price
1 — 99 8.006
100 — 249 6.527
250 — 999 5.13
1,000 + 3.05

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Serializers & Deserializers - Serdes
RoHS Y
Type Deserializer
Data Rate 800 Mb/s
Input Type BLVDS
Output Type LVTTL
Number of Inputs 1 Input
Number of Outputs 10 Output
Operating Supply Voltage 3.3 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Mounting Style SMD/SMT
Package / Case FBGA-49
Packaging Tray
Height 1.04 mm
Input Current 1 uA
Length 7 mm
Series SCAN921226H
Width 7 mm
Brand Texas Instruments
Moisture Sensitive Yes
Operating Supply Current 120 mA
Pd - Power Dissipation 1.47 W
Product Type Serializers & Deserializers - Serdes
Factory Pack Quantity 416
Subcategory Interface ICs
Supply Voltage - Max 3.6 V
Supply Voltage - Min 3 V
Unit Weight 0.014110 oz

For more information, please refer to datasheet

Documents

SCAN921226HSM/NOPB Datasheet

More Information

The SCAN921025H transforms a 10-bit wide parallel LVCMOS/LVTTL data bus into a single high speed Bus LVDS serial data stream with embedded clock. The SCAN921226H receives the Bus LVDS serial data stream and transforms it back into a 10-bit wide parallel data bus and recovers parallel clock.
