SCAN921821TSM/NOPB Texas Instruments - Yeehing Electronics

Dual 18-bit serializer with pre-emphasis, IEEE 1149.1 (JTAG), and at-speed BIST

Pricing (USD)

Quantity	Unit Price
1 — 99	13.076
100 — 249	11.422
250 — 999	8.806
1,000 +	5.51

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Serializers & Deserializers - Serdes
RoHS	Y
Type	Serializer
Data Rate	2.376 Gb/s
Input Type	LVDS
Output Type	LVDS
Number of Inputs	18 Input
Number of Outputs	1 Output
Operating Supply Voltage	3.15 V to 3.45 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT

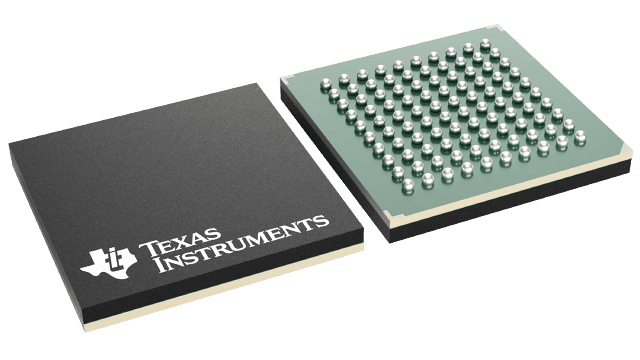

Package / Case	nFBGA-100
Packaging	Tray
Series	SCAN921821
Brand	Texas Instruments
Development Kit	LVDS-18B-EVK
Moisture Sensitive	Yes
Operating Supply Current	325 mA
Pd - Power Dissipation	3.57 W
Product Type	Serializers & Deserializers - Serdes
Factory Pack Quantity	240
Subcategory	Interface ICs
Supply Voltage - Max	3.45 V
Supply Voltage - Min	3.15 V

For more information, please refer to datasheet

Documents

SCAN921821TSM/NOPB Datasheet

More Information

The SCAN921821 is a dual channel 18-bit serializer featuring signal conditioning, boundary SCAN, and at-speed BIST. Each serializer block transforms an 18-bit parallel LVCMOS/LVTTL data bus into a single Bus LVDS data stream with embedded clock. This single serial data stream with embedded clock simplifies PCB design and reduces PCB cost by narrowing data paths that in turn reduce PCB size and layers. The single serial data stream also reduces cable size, the number of connectors, and eliminates clock-to-data and data-to-data skew.
