Texas Instruments
SCAN926260TUFX/NOPB
SCAN926260TUFX/NOPB
Regular price
$11.97 USD
Regular price
Sale price
$11.97 USD
Unit price
per
Couldn't load pickup availability

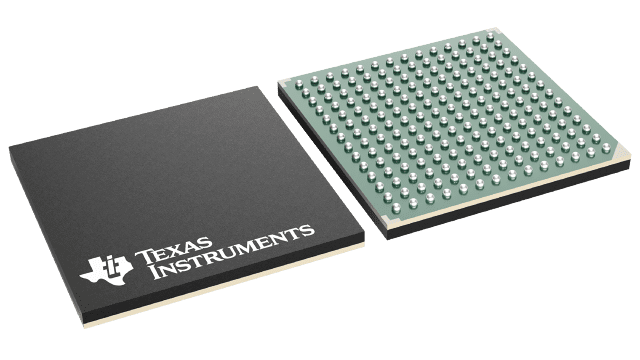

SCAN926260TUFX/NOPB Texas Instruments - Yeehing Electronics
Six 1 to 10 bus LVDS deserializers with IEEE 1149.1 and at-speed BIST
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 26.154 |
| 100 — 249 | 23.248 |
| 250 — 999 | 19.111 |
| 1,000 + | 11.97 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LVDS Interface IC |
| RoHS | Y |
| Type | LVTTL |
| Number of Drivers | 10 Driver |
| Number of Receivers | 6 Receiver |
| Data Rate | 660 Mb/s |
| Input Type | LVDS |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | LBGA-196 |
| Packaging | Reel |
| Height | 1.03 mm |
| Input Voltage MAX | 50 mV |
| Length | 15 mm |
| Series | SCAN926260 |
| Width | 15 mm |
| Brand | Texas Instruments |
| Input Voltage MIN | - 50 mV |
| Moisture Sensitive | Yes |
| Operating Supply Current | 600 mA |
| Operating Supply Voltage | 3.3 V |
| Pd - Power Dissipation | 3.7 W |
| Product Type | LVDS Interface IC |
| Factory Pack Quantity | 1000 |
| Subcategory | Interface ICs |
For more information, please refer to datasheet
Documents
| SCAN926260TUFX/NOPB Datasheet |
More Information
The SCAN926260 integrates six 10-bit deserializer devices into a single chip. The SCAN926260 can simultaneously deserialize up to six data streams that have been serialized by TI’s 10-bit Bus LVDS serializers. In addition, the SCAN926260 is compliant with IEEE standard 1149.1 and also features an At-Speed Built-In Self Test (BIST). For more details, please see the sections titled IEEE 1149.1 Test Modes and BIST Alone Test Modes.
