Texas Instruments
SCAN928028TUF/NOPB
SCAN928028TUF/NOPB
Regular price
$11.48 USD
Regular price
Sale price
$11.48 USD
Unit price
per
Couldn't load pickup availability
SCAN928028TUF/NOPB Texas Instruments - Yeehing Electronics
8-channel 10:1 serializer with IEEE 1149.1 and at-speed BIST
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 25.094 |
| 100 — 249 | 22.305 |
| 250 — 999 | 18.336 |
| 1,000 + | 11.48 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Serializers & Deserializers - Serdes |
| RoHS | Y |
| Type | Serializer |
| Data Rate | 660 Mb/s |
| Input Type | LVCMOS, LVTTL |
| Output Type | LVDS, BLVDS |
| Number of Inputs | 10 Input |
| Number of Outputs | 1 Output |
| Operating Supply Voltage | 3.3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |

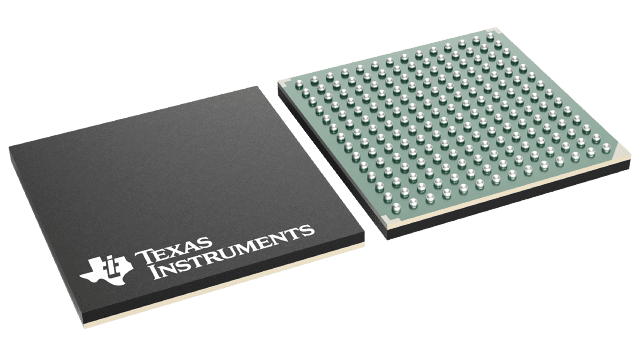

| Package / Case | LBGA-196 |
| Packaging | Tray |
| Height | 1.03 mm |
| Input Current | 1 uA |
| Length | 15 mm |
| Series | SCAN928028 |
| Width | 15 mm |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 350 mA |
| Pd - Power Dissipation | 740 mW |
| Product Type | Serializers & Deserializers - Serdes |
| Factory Pack Quantity | 119 |
| Subcategory | Interface ICs |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 3 V |
For more information, please refer to datasheet
Documents
| SCAN928028TUF/NOPB Datasheet |
More Information
The SCAN928028 integrates eight serializer devices into a single chip. The SCAN928028 can simultaneously serialize up to eight 10-bit data streams. The 10-bit parallel inputs are LVTTL signal levels. The serialized outputs are LVDS signals with extra drive current for point-to-point and lightly loaded multidrop applications. Each serializer block in the SCAN928028 operates independently by using strobes from a single shared PLL.
