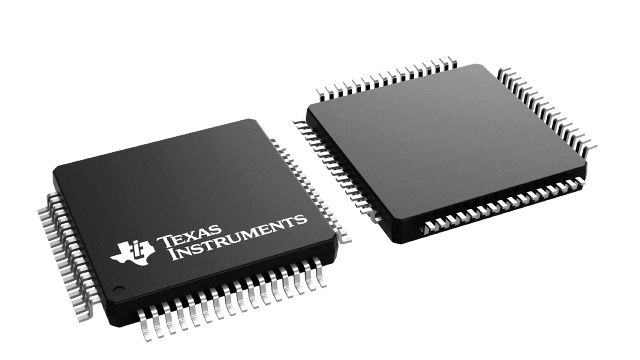

SCAN92LV090VEH/NOPB Texas Instruments - Yeehing Electronics
9-channel bus LVDS transceiver with boundary scan
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 10.103 |
| 100 — 249 | 8.237 |
| 250 — 999 | 6.474 |
| 1,000 + | 3.84 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LVDS Interface IC |
| RoHS | Y |
| Type | LVCMOS, LVTTL, LVDS |
| Number of Drivers | 2 Driver |
| Number of Receivers | 2 Receiver |
| Data Rate | 100 Mb/s |
| Input Type | LVCMOS, LVDS, LVTTL |
| Output Type | LVTTL, LVDS |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | LQFP-64 |
| Packaging | Tray |
| Height | 1.4 mm |
| Length | 10 mm |
| Series | SCAN92LV090 |
| Width | 10 mm |
| Brand | Texas Instruments |
| Maximum Output Voltage | 460 mV |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 3.3 V |
| Pd - Power Dissipation | 1.74 W |
| Product Type | LVDS Interface IC |
| Propagation Delay Time | 3.9 ns |
| Factory Pack Quantity | 160 |
| Subcategory | Interface ICs |
| Unit Weight | 0.012088 oz |
For more information, please refer to datasheet
Documents
| SCAN92LV090VEH/NOPB Datasheet |
More Information
The SCAN92LV090A is one in a series of Bus LVDS transceivers designed specifically for the high speed, low power proprietary backplane or cable interfaces. The device operates from a single 3.3V power supply and includes nine differential line drivers and nine receivers. To minimize bus loading, the driver outputs and receiver inputs are internally connected. The separate I/O of the logic side allows for loop back support. The device also features a flow through pin out which allows easy PCB routing for short stubs between its pins and the connector.
