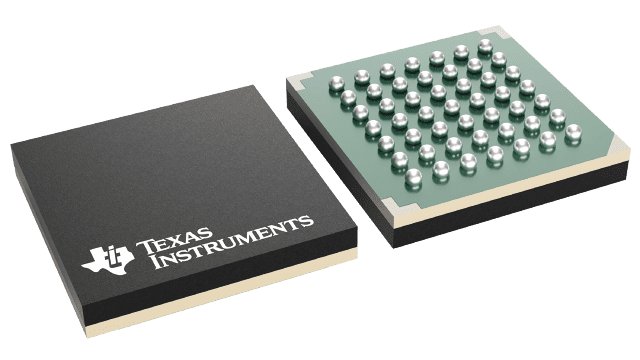

SCANSTA111SM/NOPB Texas Instruments - Yeehing Electronics

Enhanced scan bridge multidrop addressable IEEE 1149.1 (JTAG) port

Pricing (USD)

Quantity	Unit Price
1 — 99	9.346
100 — 249	8.164
250 — 999	6.294
1,000 +	3.94

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Interface - Specialized
RoHS	Y
Type	Multidrop IEEE Port
Operating Supply Voltage	3 V to 3.6 V
Operating Supply Current	1.65 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	nFBGA-49
Packaging	Tray
Series	SCANSTA111
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	Interface - Specialized
Protocol Supported	Boundary Scan
Factory Pack Quantity	416
Subcategory	Interface ICs
Supply Voltage - Max	3.6 V
Unit Weight	0.002381 oz

For more information, please refer to datasheet

Documents

SCANSTA111SM/NOPB Datasheet

More Information

The SCANSTA111 extends the IEEE Std. 1149.1 test bus into a multidrop test bus environment. The advantage of a multidrop approach over a single serial scan chain is improved test throughput and the ability to remove a board from the system and retain test access to the remaining modules. Each SCANSTA111 supports up to 3 local IEEE 1149.1 scan rings which can be accessed individually or combined serially. Addressing is accomplished by loading the instruction register with a value matching that of the Slot inputs. Backplane and inter-board testing can easily be accomplished by parking the local TAP Controllers in one of the stable TAP Controller states via a Park instruction. The 32-bit TCK counter enables built in self test operations to be performed on one port while other scan chains are simultaneously tested.
