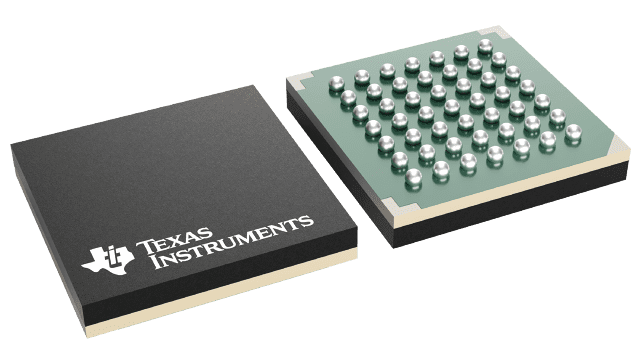

SCANSTA111SMX/NOPB


YeeHing #: Y007-SCANSTA111SMX/NOPB
Inventory: 3200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

SCANSTA111SMX/NOPB Texas Instruments - Yeehing Electronics

Enhanced scan bridge multidrop addressable IEEE 1149.1 (JTAG) port

Pricing (USD)

Quantity Unit Price
1 — 99 8.766
100 — 249 7.146
250 — 999 5.617
1,000 + 3.33

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Interface - Specialized
RoHS Y
Type Enhanced SCAN Bridge Multidrop Addressable IEEEs
Operating Supply Voltage 3 V to 3.6 V
Operating Supply Current 1.65 mA
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Mounting Style SMD/SMT
Package / Case nFBGA-49
Packaging Reel
Series SCANSTA111
Brand Texas Instruments
Moisture Sensitive Yes
Product Type Interface - Specialized
Protocol Supported Boundary Scan
Factory Pack Quantity 2000
Subcategory Interface ICs
Supply Voltage - Max 3.6 V

For more information, please refer to datasheet

Documents

SCANSTA111SMX/NOPB Datasheet

More Information

The SCANSTA111 extends the IEEE Std. 1149.1 test bus into a multidrop test bus environment. The advantage of a multidrop approach over a single serial scan chain is improved test throughput and the ability to remove a board from the system and retain test access to the remaining modules. Each SCANSTA111 supports up to 3 local IEEE 1149.1 scan rings which can be accessed individually or combined serially. Addressing is accomplished by loading the instruction register with a value matching that of the Slot inputs. Backplane and inter-board testing can easily be accomplished by parking the local TAP Controllers in one of the stable TAP Controller states via a Park instruction. The 32-bit TCK counter enables built in self test operations to be performed on one port while other scan chains are simultaneously tested.
