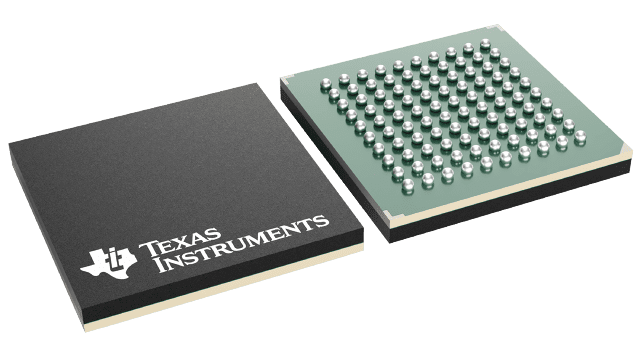

SCANSTA112SM Texas Instruments - Yeehing Electronics

7-port multidrop IEEE 1149.1 (JTAG) multiplexer

Pricing (USD)

Quantity	Unit Price
1 — 99	15.124
100 — 249	13.211
250 — 999	10.186
1,000 +	7.29

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Encoders, Decoders, Multiplexers & Demultiplexers
RoHS	Y
Product	Multiplexers
Logic Family	STA112
Number of Input Lines	8 Input
Propagation Delay Time	12 ns
Supply Voltage - Min	3 V
Supply Voltage - Max	3.6 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	nFBGA-100
Packaging	Tray
Operating Temperature Range	- 40 C to + 85 C
Series	SCANSTA112
Brand	Texas Instruments
Development Kit	SCANSTA112EVK/NOPB
Moisture Sensitive	Yes
Operating Supply Voltage	3.3 V
Product Type	Encoders, Decoders, Multiplexers & Demultiplexers
Factory Pack Quantity	240
Subcategory	Logic ICs
Unit Weight	0.005143 oz

For more information, please refer to datasheet

Documents

SCANSTA112SM Datasheet

More Information

The SCANSTA112 extends the IEEE Std. 1149.1 test bus into a multidrop test bus environment. The advantage of a multidrop approach over a single serial scan chain is improved test throughput and the ability to remove a board from the system and retain test access to the remaining modules. Each SCANSTA112 supports up to 7 local IEEE1149.1 scan chains which can be accessed individually or combined serially.
