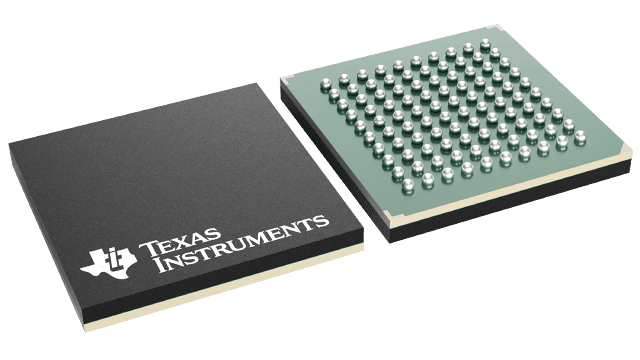

SCANSTA112SM/NOPB Texas Instruments - Yeehing Electronics

7-port multidrop IEEE 1149.1 (JTAG) multiplexer

Pricing (USD)

Quantity	Unit Price
1 — 99	12.684
100 — 249	11.079
250 — 999	8.543
1,000 +	5.35

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

SCANSTA112SM/NOPB Datasheet

More Information

The SCANSTA112 extends the IEEE Std. 1149.1 test bus into a multidrop test bus environment. The advantage of a multidrop approach over a single serial scan chain is improved test throughput and the ability to remove a board from the system and retain test access to the remaining modules. Each SCANSTA112 supports up to 7 local IEEE1149.1 scan chains which can be accessed individually or combined serially.
