Texas Instruments
SCANSTA112SMX/NOPB
SCANSTA112SMX/NOPB
Regular price
$4.53 USD
Regular price
Sale price
$4.53 USD
Unit price
per
Couldn't load pickup availability
SCANSTA112SMX/NOPB Texas Instruments - Yeehing Electronics
7-port multidrop IEEE 1149.1 (JTAG) multiplexer
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 10.734 |
| 100 — 249 | 9.376 |
| 250 — 999 | 7.229 |
| 1,000 + | 4.53 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Encoders, Decoders, Multiplexers & Demultiplexers |
| RoHS | Y |
| Product | Multiplexers |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |

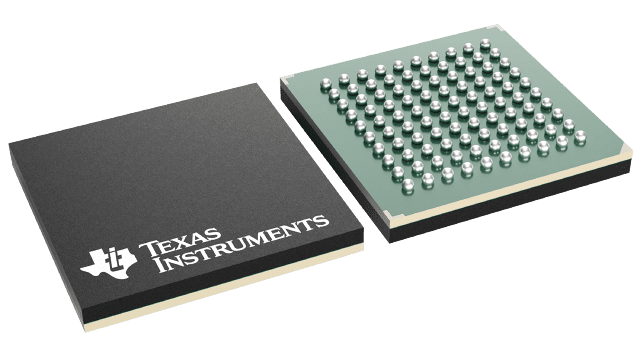

| Package / Case | nFBGA-100 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | SCANSTA112 |
| Brand | Texas Instruments |
| Development Kit | SCANSTA112EVK/NOPB |
| Moisture Sensitive | Yes |
| Product Type | Encoders, Decoders, Multiplexers & Demultiplexers |
| Factory Pack Quantity | 1000 |
| Subcategory | Logic ICs |
For more information, please refer to datasheet
Documents
| SCANSTA112SMX/NOPB Datasheet |
More Information
The SCANSTA112 extends the IEEE Std. 1149.1 test bus into a multidrop test bus environment. The advantage of a multidrop approach over a single serial scan chain is improved test throughput and the ability to remove a board from the system and retain test access to the remaining modules. Each SCANSTA112 supports up to 7 local IEEE1149.1 scan chains which can be accessed individually or combined serially.
