Texas Instruments

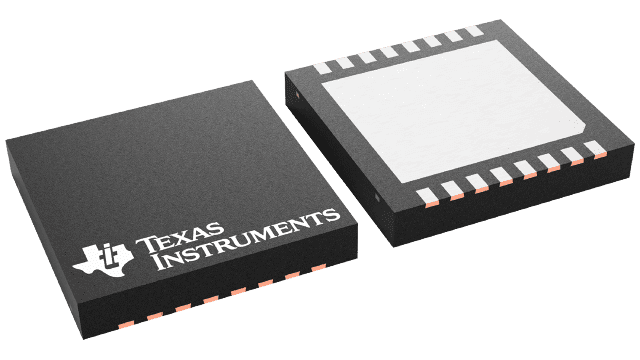

SCANSTA476TSD/NOPB
SCANSTA476TSD/NOPB
Regular price
$1.65 USD
Regular price
Sale price
$1.65 USD
Unit price
per
Couldn't load pickup availability
SCANSTA476TSD/NOPB Texas Instruments - Yeehing Electronics
8-input IEEE 1149.1 analog voltage monitor
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.331 |
| 100 — 249 | 3.531 |
| 250 — 999 | 2.775 |
| 1,000 + | 1.65 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Supervisory Circuits |
| RoHS | Y |
| Type | Voltage Monitors |
| Package / Case | LLP-16 |
| Threshold Voltage | 2.7 V to 5.5 V |
| Number of Inputs Monitored | 8 Input |
| Manual Reset | No Manual Reset |
| Watchdog Timers | No Watchdog |
| Battery Backup Switching | No Backup |
| Supply Voltage - Max | 5.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | SCANSTA476 |
| Packaging | Reel |
| Height | 0.8 mm |
| Length | 5 mm |
| Operating Temperature Range | - 40 C to + 85 C |
| Width | 5 mm |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 5 mA |
| Product Type | Supervisory Circuits |
| Factory Pack Quantity | 1000 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 2.7 V |
| Unit Weight | 0.002183 oz |
For more information, please refer to datasheet
Documents
| SCANSTA476TSD/NOPB Datasheet |
More Information
The SCANSTA476 is a low power, Analog Voltage Monitor used for sampling or monitoring up to 8 analog/mixed-signal input channels. Analog Voltage Monitors are valuable during product development, environmental test, production, and field service for verifying and monitoring power supply and reference voltages. In a supervisory role, the 'STA476 is useful for card or system-level health monitoring and prognostics applications.
