SE555JGB Texas Instruments - Yeehing Electronics

Precision Timer

Pricing (USD)

Quantity	Unit Price
1 — 99	24.85
100 — 249	22.089
250 — 999	18.159
1,000 +	11.37

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Minimum Operating Temperature	-55
Maximum Operating Temperature	125
Factory Pack Quantity	1

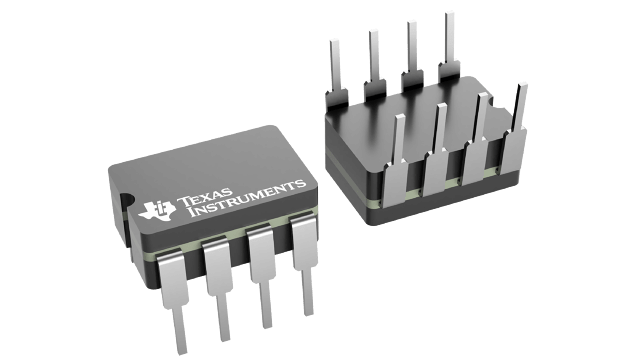

Package | Pins	CDIP (JG) | 8

For more information, please refer to datasheet

Documents

SE555JGB Datasheet

More Information

These devices are precision timing circuits capable of producing accurate time delays or oscillation. In the time-delay or mono-stable mode of operation, the timed interval is controlled by a single external resistor and capacitor network. In the a-stable mode of operation, the frequency and duty cycle can be controlled independently with two external resistors and a single external capacitor.
