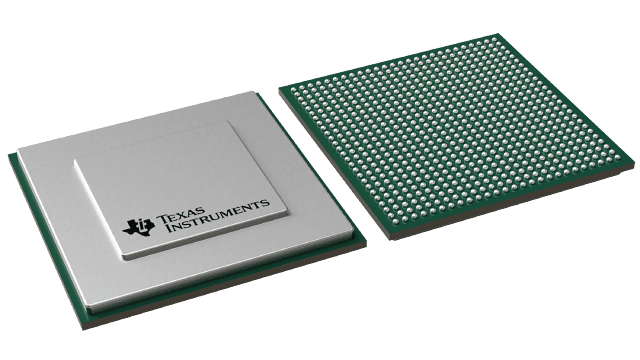

SM320C6201GJCA20EP Texas Instruments - Yeehing Electronics
Enhanced product C6201 fixed point DSP
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 133.633 |
| 100 — 249 | 120.961 |
| 250 — 999 | 117.505 |
| 1,000 + | 80.64 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital Signal Processors & Controllers - DSP, DSC |
| RoHS | N |
| Mounting Style | SMD/SMT |
| Package / Case | FCBGA-352 |
| Series | SM320C6201-EP |
| Product | DSPs |
| Maximum Clock Frequency | 200 MHz |
| Data RAM Size | 128 kB |
| Operating Supply Voltage | 2.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Packaging | Tray |
| Program Memory Type | Asynchronous SRAM, EPROM, Synchronous SDRAM, SBSRAM |
| Brand | Texas Instruments |
| Data Bus Width | 32 bit |
| Instruction Type | Fixed Point |
| Moisture Sensitive | Yes |
| Product Type | DSP - Digital Signal Processors & Controllers |
| Factory Pack Quantity | 24 |
| Subcategory | Embedded Processors & Controllers |
| Part # Aliases | V62/04606-01XA |
| Unit Weight | 0.492329 oz |
For more information, please refer to datasheet
Documents
| SM320C6201GJCA20EP Datasheet |
More Information
The TMS320C62x DSPs (including the SM320C6201-EP) are the fixed-point DSP family in the TMS320C6000 DSP platform. The C6201 device is based on the high-performance, advanced VelociTI very-long-instruction-word (VLIW) architecture developed by Texas Instruments (TI), making these DSPs an excellent choice for multichannel and multifunction applications. With performance of up to 1600 MIPS at a clock rate of 200 MHz, the C6201 offers cost-effective solutions to high-performance DSP programming challenges. The C6201 DSP possesses the operational flexibility of high-speed controllers and the numerical capability of array processors. The processor has 32 general-purpose registers of 32-bit word length and eight highly independent functional units. The eight functional units provide six arithmetic logic units (ALUs) for a high degree of parallelism and two 16-bit multipliers for a 32-bit result. The C6201 can produce two multiply-accumulates (MACs) per cyclefor a total of 466 million MACs per second (MMACS). The C62x DSP also has application-specific hardware logic, on-chip memory, and additional on-chip peripherals.
