Texas Instruments
SM320DM642AGDKI7EP
SM320DM642AGDKI7EP
Regular price
$48.76 USD
Regular price
Sale price
$48.76 USD
Unit price
per
Couldn't load pickup availability
SM320DM642AGDKI7EP Texas Instruments - Yeehing Electronics

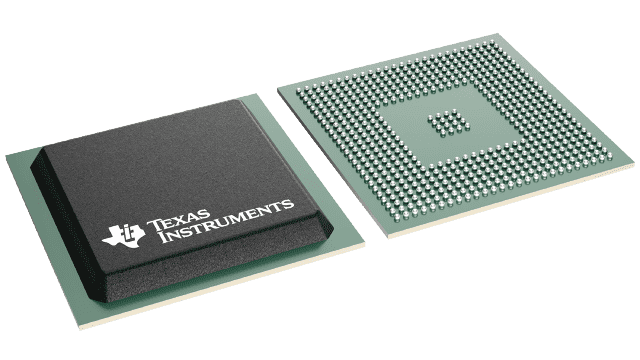

Enhanced product digital media DM642 processor
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 92.652 |
| 100 — 249 | 89.865 |
| 250 — 999 | 74.818 |
| 1,000 + | 48.76 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital Signal Processors & Controllers - DSP, DSC |
| RoHS | N |
| Mounting Style | SMD/SMT |
| Package / Case | BGA-548 |
| Series | SM320DM642-EP |
| Product | DSPs |
| Core | TMS320C64x |
| Maximum Clock Frequency | 720 MHz |
| L1 Cache Instruction Memory | 16 kB |
| L1 Cache Data Memory | 16 kB |
| Operating Supply Voltage | 1.4 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 90 C |
| Packaging | Tray |
| Brand | Texas Instruments |
| Interface Type | Ethernet, I2C, PCI, Video |
| Number of I/Os | 16 I/O |
| Data Bus Width | 32 bit |
| I/O Voltage | 3.3 V |
| Instruction Type | Fixed Point |
| L2 Cache Instruction / Data Memory | 256 kB |
| Moisture Sensitive | Yes |
| Number of Cores | 1 Core |
| Number of Timers/Counters | 3 x 32 bit |
| Processor Series | DaVinci |
| Product Type | DSP - Digital Signal Processors & Controllers |
| Factory Pack Quantity | 60 |
| Subcategory | Embedded Processors & Controllers |
| Watchdog Timers | Watchdog Timer |
| Part # Aliases | V62/07644-01XA |
| Unit Weight | 0.086284 oz |
For more information, please refer to datasheet
Documents
| SM320DM642AGDKI7EP Datasheet |
More Information
The C64x™ DSPs (including the SM320DM642-EP device) are the highest-performance fixed-point DSP generation in the C6000 DSP platform. The DM642 device is based on the second-generation high-performance, advanced VelociTI™ very-long-instruction-word (VLIW) architecture (VelociTI.2™) developed by Texas Instruments (TI), making these DSPs an excellent choice for digital media applications. The C64x is a code-compatible member of the C6000 DSP platform.
