Texas Instruments

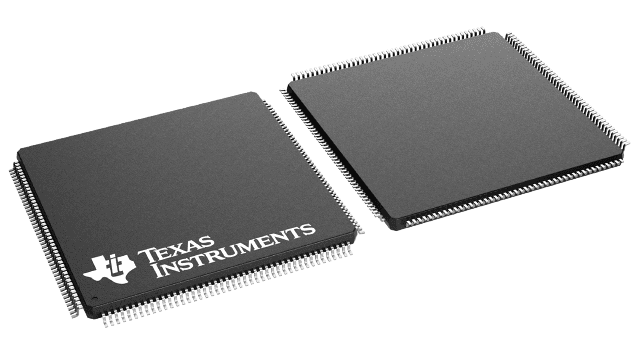

SM320F2812PGFMEP
SM320F2812PGFMEP
Regular price
$21.99 USD
Regular price
Sale price
$21.99 USD
Unit price
per
Couldn't load pickup availability
SM320F2812PGFMEP Texas Instruments - Yeehing Electronics
C2000™ Enhanced Product 32-bit MCU with 150 MHz, 256 KB Flash, EMIF
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 48.066 |
| 100 — 249 | 42.726 |
| 250 — 999 | 35.123 |
| 1,000 + | 21.99 |
The above prices are for reference only.
Specifications
| Manufacturer | NXP |
| Product Category | Digital Signal Processors & Controllers - DSP, DSC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | QFP-160 |
| Product | DSCs |
| Core | 56800E |
| Maximum Clock Frequency | 60 MHz |
| Program Memory Size | 512 kB |
| Data RAM Size | 36 kB |
| Operating Supply Voltage | 2.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Tray |
| Height | 1.4 mm |
| Length | 24 mm |
| Program Memory Type | Flash |
| Width | 24 mm |
| Brand | NXP / Freescale |
| Data ROM Size | 32 kB |
| Interface Type | CAN, SCI, SPI |
| Number of I/Os | 76 I/O |
| ADC Resolution | 12 bit |
| Data Bus Width | 16 bit |
| Moisture Sensitive | Yes |
| Number of Timers/Counters | 4 Timer |
| Product Type | DSP - Digital Signal Processors & Controllers |
| Factory Pack Quantity | 200 |
| Subcategory | Embedded Processors & Controllers |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 3 V |
| Part # Aliases | 935320997557 |
| Unit Weight | 0.064671 oz |
For more information, please refer to datasheet
Documents
| SM320F2812PGFMEP Datasheet |
More Information
The SM320F2810-EP, SM320F2811-EP, SM320F2812-EP, SM320C2810-EP, SM320C2811-EP, and SM320C2812-EP devices, members of the TMS320C28x™ DSP generation, are highly integrated, high-performance solutions for demanding control applications. The functional blocks and the memory maps are described in Section 3, Functional Overview.
