Texas Instruments
SM32C6415EGLZ50AEP
SM32C6415EGLZ50AEP
Regular price
$98.60 USD
Regular price
Sale price
$98.60 USD
Unit price
per
Couldn't load pickup availability

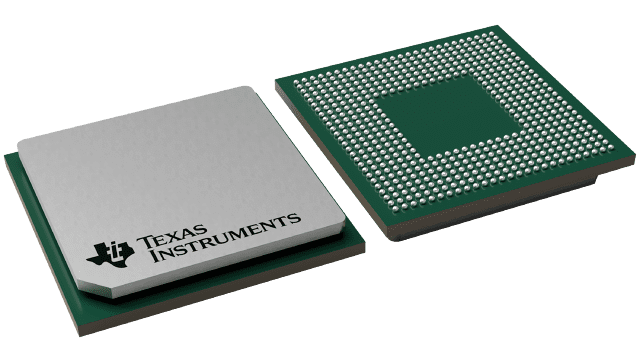

SM32C6415EGLZ50AEP Texas Instruments - Yeehing Electronics
Enhanced product C6415 fixed point DSP
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 163.398 |
| 100 — 249 | 147.903 |
| 250 — 999 | 143.677 |
| 1,000 + | 98.60 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital Signal Processors & Controllers - DSP, DSC |
| RoHS | N |
| Mounting Style | SMD/SMT |
| Package / Case | FCBGA-532 |
| Series | SM320C6415-EP |
| Product | DSPs |
| Maximum Clock Frequency | 500 MHz |
| Program Memory Size | 32 kB |
| Data RAM Size | 1 MB |
| Operating Supply Voltage | 1.25 V |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 105 C |
| Packaging | Tray |
| Brand | Texas Instruments |
| Number of I/Os | 16 I/O |
| Data Bus Width | 32 bit |
| Instruction Type | Fixed Point |
| Moisture Sensitive | Yes |
| Product Type | DSP - Digital Signal Processors & Controllers |
| Factory Pack Quantity | 60 |
| Subcategory | Embedded Processors & Controllers |
| Part # Aliases | V62/04609-05XA |
| Unit Weight | 0.110457 oz |
For more information, please refer to datasheet
Documents
| SM32C6415EGLZ50AEP Datasheet |
More Information
The TMS320C64x DSPs (including the SM320C6414-EP, SM320C6415-EP, and SM320C6416-EP devices) are the highest-performance fixed-point DSP generation in the TMS320C6000 DSP platform. The SM320C64x (C64x) device is based on the second-generation high-performance, advanced VelociTI very-long-instruction-word (VLIW) architecture (VelociTI.2) developed by Texas Instruments (TI), making these DSPs an excellent choice for multichannel and multifunction applications. The C64x is a code-compatible member of the C6000 DSP platform.
