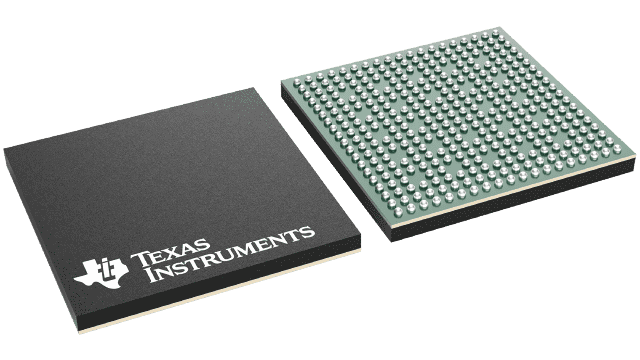

SM32DM355GCEM216EP Texas Instruments - Yeehing Electronics
Enhanced Product Digital Media DM355 Processor
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 47.811 |
| 100 — 249 | 42.499 |
| 250 — 999 | 34.936 |
| 1,000 + | 21.87 |
The above prices are for reference only.
Specifications
| Manufacturer | NXP |
| Product Category | Processors - Application Specialized |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | MAPBGA-624 |
| Series | i.MX 6Solo/6DualLite |
| Application | Automotive Applications |
| Core | ARM Cortex A9 |
| Number of Cores | 1 Core |
| Data Bus Width | 32 bit |
| Maximum Clock Frequency | 800 MHz |
| L1 Cache Instruction Memory | 32 kB |
| L1 Cache Data Memory | 32 kB |
| Operating Supply Voltage | 1.25 V to 1.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Qualification | AEC-Q100 |
| Packaging | Tray |
| Memory Type | DDR3, DDR3L, LPDDR2, NOR Flash, PSRAM |
| Brand | NXP / Freescale |
| Data RAM Size | 144 kB |
| Data ROM Size | 96 kB |
| Interface Type | I2C, I2S, PCIe, UART |
| I/O Voltage | 1.2 V, 1.35 V, 1.5 V |
| Instruction Type | Floating Point |
| L2 Cache Instruction / Data Memory | 512 kB |
| Moisture Sensitive | Yes |
| Processor Series | i.MX 6Solo |
| Product Type | Processors - Application Specialized |
| Factory Pack Quantity | 300 |
| Subcategory | Processors - Application Specialized |
| Tradename | i.MX |
| Watchdog Timers | Watchdog Timer |
| Part # Aliases | 935319989557 |
| Unit Weight | 0.044181 oz |
For more information, please refer to datasheet
Documents
| SM32DM355GCEM216EP Datasheet |
More Information
The DM355 is a highly integrated, programmable platform for digital still camera, digital photo frames, IP security cameras, 4-channel digital video recorders, video door bell application, and other low cost portable digital video applications. Designed to offer portable video designers and manufacturers the ability to produce affordable portable digital video solutions with high picture quality, the DM355 combines high performance MPEG4 HD (720p) codecs and JPEG codecs up to 50M pixels per second, high quality, and low power consumption at a very low price point. The DM355 also enables seamless interface to most additional external devices required for a complete digital camera implementation. The interface is flexible enough to support various types of CCD and CMOS sensors, signal conditioning circuits, power management, DDR/mDDR memory, SRAM, NAND, shutter, Iris and auto-focus motor controls, etc.
