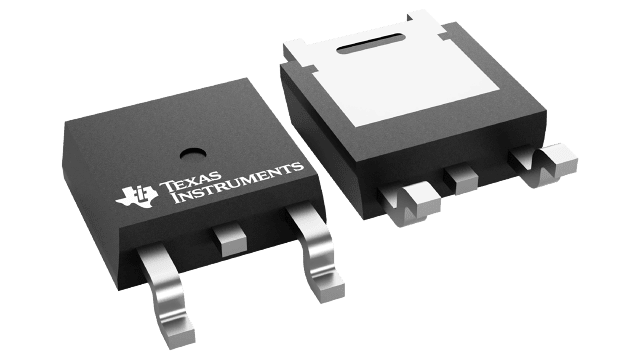

SM72238TDE-5.0/NOPB Texas Instruments - Yeehing Electronics
Micropower voltage regulator
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.061 |
100 — 249 | 1.702 |
250 — 999 | 1.223 |
1,000 + | 0.64 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | LDO Voltage Regulators |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | TO-252-3 |
Output Voltage | 5 V |
Output Current | 100 mA |
Number of Outputs | 1 Output |
Input Voltage MAX | 30 V |
Input Voltage MIN | - 0.3 V |
Output Type | Fixed |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Dropout Voltage | 380 mV |
Series | SM72238 |
Packaging | Reel |
Brand | Texas Instruments |
Dropout Voltage - Max | 600 mV |
Output Voltage Range | - |
Line Regulation | 0.04 % |
Load Regulation | 0.1 % |
Moisture Sensitive | Yes |
Product Type | LDO Voltage Regulators |
Factory Pack Quantity | 250 |
Subcategory | PMIC - Power Management ICs |
Tradename | SolarMagic |
Unit Weight | 0.139332 oz |
For more information, please refer to datasheet
Documents
SM72238TDE-5.0/NOPB Datasheet |
More Information
The SM72238 is a micropower voltage regulator with very low quiescent current (75µA typ.) and very low dropout voltage (typ. 40mV at light loads and 380mV at 100mA). It is ideally suited for use in battery-powered systems. Furthermore, the quiescent current of the SM72238 increases only slightly in dropout, prolonging battery life.
