SM72485SDE/NOPB Texas Instruments - Yeehing Electronics

100V, 150 mA Constant On-Time Buck Switching Regulator

Pricing (USD)

Quantity	Unit Price
1 — 99	2.695
100 — 249	2.361
250 — 999	1.655
1,000 +	0.93

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT

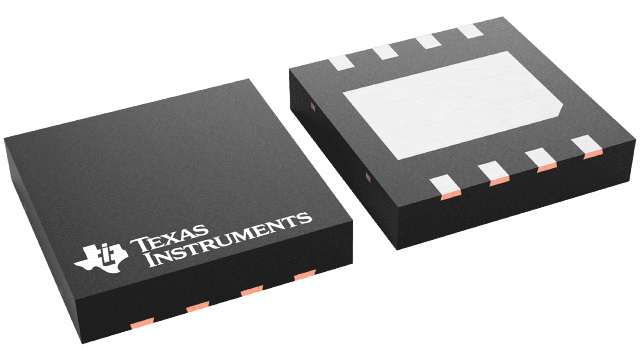

Package / Case	WSON-8
Output Voltage	Adjustable
Output Current	150 mA
Number of Outputs	1 Output
Input Voltage MAX	95 V
Topology	Buck
Input Voltage MIN	6 V
Switching Frequency	50 kHz to 1.1 MHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Series	SM72485
Packaging	Reel
Operating Temperature Range	- 40 C to + 125 C
Type	Buck
Brand	Texas Instruments
Operating Supply Current	485 uA
Product Type	Switching Voltage Regulators
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Tradename	SolarMagic
Unit Weight	0.000384 oz

For more information, please refer to datasheet

Documents

SM72485SDE/NOPB Datasheet

More Information

The SM72485 step-down switching regulator features all of the functions required to implement a low cost, efficient, Buck bias regulator. This high voltage regulator contains an 100-V N-channel buck switch. The device is easy to implement and is provided in the VSSOP and the thermally enhanced WSON package. The regulator is based on a control scheme using an on-time inversely proportional to VIN. This feature allows the operating frequency to remain relatively constant. The control scheme requires no loop compensation. An intelligent current limit is implemented with forced off-time, which is inversely proportional to VOUT. This scheme ensures short circuit control while providing minimum foldback. Other features include: Thermal shutdown, VCC undervoltage lockout, gate drive undervoltage lockout, maximum duty cycle limiter, and a precharge switch.
