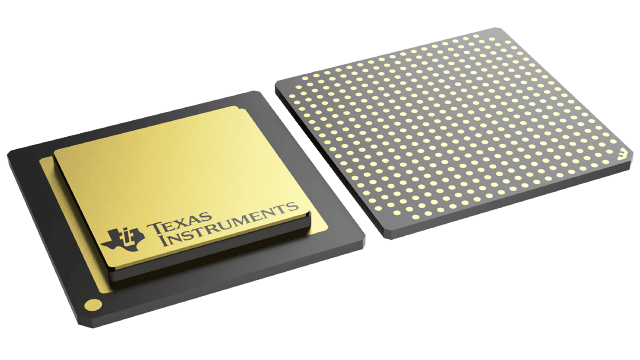

SMJ320C6201BGLPW15 Texas Instruments - Yeehing Electronics
Fixed Point Digital Signal Processor, Military
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 930.448 |
| 100 — 249 | 842.216 |
| 250 — 999 | 818.152 |
| 1,000 + | 561.48 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| SMJ320C6201BGLPW15 Datasheet |
More Information
The 320C6201B DSP is a member of the fixed-point DSP family in the 320C6000 platform. The SM/SMJ320C6201B (C6201B) device is based on the high-performance, advanced VelociTI very-long-instruction-word (VLIW) architecture developed by Texas Instruments (TI), making this DSP an excellent choice for multichannel and multifunction applications. With performance of up to 1600 million instructions per second (MIPS) at a clock rate of 200 MHz, the C6201B offers cost-effective solutions to high-performance DSP programming challenges. The C6201B is a newer revision of the C6201. The C6201B DSP possesses the operational flexibility of high-speed controllers and the numerical capability of array processors. This processor has 32 general-purpose registers of 32-bit word length and eight highly independent functional units. The eight functional units provide six arithmetic logic units (ALUs) for a high degree of parallelism and two 16-bit multipliers for a 32-bit result. The C6201B can produce two multiply-accumulates (MACs) per cycle - for a total of 400 million MACs per second (MMACS). The C6201B DSP also has application-specific hardware logic, on-chip memory, and additional on-chip peripherals.
