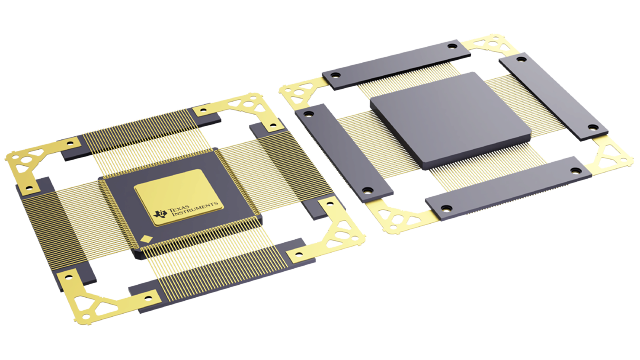

SMJ320VC5416HFGW10 Texas Instruments - Yeehing Electronics

Military grade C54x fixed point DSP - ceramic package

Pricing (USD)

Quantity	Unit Price
1 — 99	728.651
100 — 249	659.554
250 — 999	640.71
1,000 +	439.70

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Minimum Operating Temperature	-55
Maximum Operating Temperature	115
Factory Pack Quantity	1
Package | Pins	CFP (HFG) | 164

For more information, please refer to datasheet

Documents

SMJ320VC5416HFGW10 Datasheet

More Information

The SMJ320VC5416 fixed-point, digital signal processor (DSP) (hereafter referred to as the 5416 unless otherwise specified) is based on an advanced modified Harvard architecture that has one program memory bus and three data memory buses. This processor provides an arithmetic logic unit (ALU) with a high degree of parallelism, application-specific hardware logic, on-chip memory, and additional on-chip peripherals. The basis of the operational flexibility and speed of this DSP is a highly specialized instruction set.
