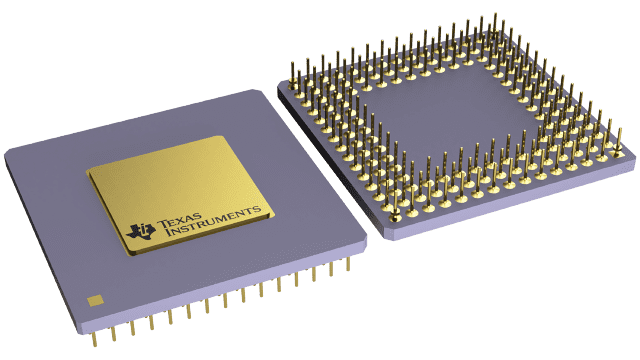

SMJ34020AGBM32


YeeHing #: Y010-SMJ34020AGBM32
Inventory: 4000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

SMJ34020AGBM32 Texas Instruments - Yeehing Electronics

Graphics System Processor

Pricing (USD)

Quantity Unit Price
1 — 99 1429.736
100 — 249 1353.143
250 — 999 1276.55
1,000 + 1000.82

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Minimum Operating Temperature -55
Maximum Operating Temperature 125
Factory Pack Quantity 1
Package | Pins CPGA (GB) | 145

For more information, please refer to datasheet

Documents

SMJ34020AGBM32 Datasheet

More Information

The SMJ34020A graphics system processor (GSP) is the second generation of an advanced high-performance CMOS 32-bit microprocessor optimized for graphics display systems. With a built-in instruction cache, the ability to simultaneously access memory and registers, and an instruction set designed to expedite raster graphics operations, the SMJ34020A provides user-programmable control of the CRT interface as well as the memory interface (both standard DRAM and multiport video RAM). The 4-gigabit (512-megabyte) physical address space is addressable on bit boundaries using variable width data fields (1 to 32 bits). Additional graphics addressing modes support 1-, 2-, 4-, 8-, 16- and 32-bit wide pixels.
