Description

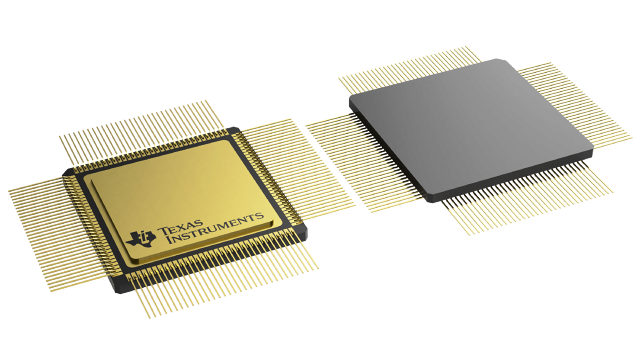

SMJ34020AHTM40 Texas Instruments - Yeehing Electronics
Graphics System Processor
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1606.976 |
100 — 249 | 1520.888 |
250 — 999 | 1434.8 |
1,000 + | 1124.88 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Minimum Operating Temperature | -55 |
Maximum Operating Temperature | 125 |
Factory Pack Quantity | 8 |
Package | Pins | CFP (HT) | 132 |
For more information, please refer to datasheet
Documents
SMJ34020AHTM40 Datasheet |
More Information
The SMJ34020A graphics system processor (GSP) is the second generation of an advanced high-performance CMOS 32-bit microprocessor optimized for graphics display systems. With a built-in instruction cache, the ability to simultaneously access memory and registers, and an instruction set designed to expedite raster graphics operations, the SMJ34020A provides user-programmable control of the CRT interface as well as the memory interface (both standard DRAM and multiport video RAM). The 4-gigabit (512-megabyte) physical address space is addressable on bit boundaries using variable width data fields (1 to 32 bits). Additional graphics addressing modes support 1-, 2-, 4-, 8-, 16- and 32-bit wide pixels.
