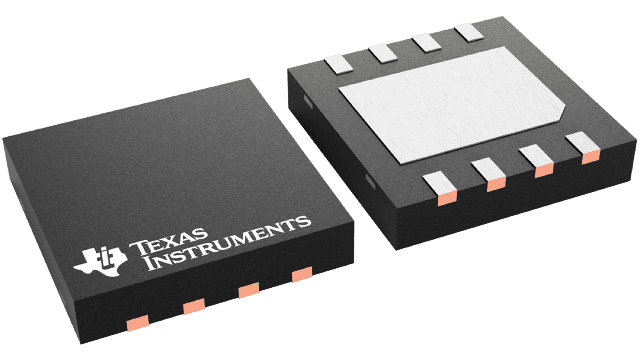

SN55HVD251DRJR


YeeHing #: Y007-SN55HVD251DRJR
Inventory: 5200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

SN55HVD251DRJR Texas Instruments - Yeehing Electronics

Industrial CAN Transceiver

Pricing (USD)

Quantity Unit Price
1 — 99 2.531
100 — 249 2.091
250 — 999 1.502
1,000 + 0.69

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category CAN Interface IC
RoHS Y
Mounting Style SMD/SMT
Package / Case WSON-8
Series SN55HVD251
Type CAN Controller
Data Rate 1 Mb/s
Supply Voltage - Max 5.5 V
Supply Voltage - Min 4.5 V
Operating Supply Current 65 mA
Minimum Operating Temperature - 55 C
Maximum Operating Temperature + 125 C
Packaging Reel
Product CAN Transceivers
Brand Texas Instruments
Moisture Sensitive Yes
Operating Supply Voltage 4.5 V to 5.5 V
Product Type CAN Interface IC
Protocol Supported CAN
Factory Pack Quantity 1000
Subcategory Interface ICs
Unit Weight 0.000384 oz

For more information, please refer to datasheet

Documents

SN55HVD251DRJR Datasheet

More Information

The HVD251 is intended for use in applications employing the Controller Area Network (CAN) serial communication physical layer in accordance with the ISO 11898 Standard. The HVD251 provides differential transmit capability to the bus and differential receive capability to a CAN controller at speeds up to 1 megabits per second (Mbps).
