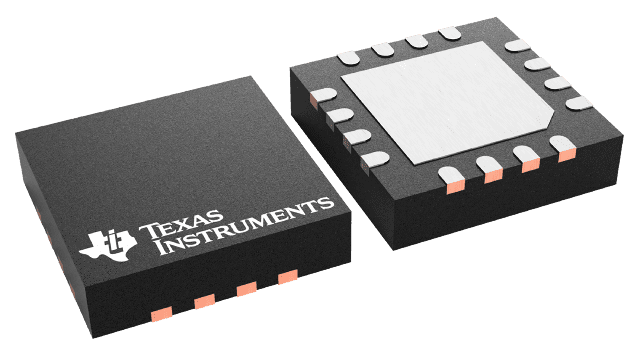

SN55LBC180RSAR Texas Instruments - Yeehing Electronics
Extended Temp Range RS-485 Transceiver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.329 |
| 100 — 249 | 2.917 |
| 250 — 999 | 2.045 |
| 1,000 + | 1.15 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | RS-485 Interface IC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | QFN-16 |
| Series | SN55LBC180 |
| Function | Transceiver |
| Data Rate | 10 Mb/s |
| Number of Drivers | 1 Driver |
| Number of Receivers | 1 Receiver |
| Duplex | Full Duplex |
| Supply Voltage - Max | 5.25 V |
| Supply Voltage - Min | 4.75 V |
| Operating Supply Current | 4 mA |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Reel |
| Product | RS-485 Transceivers |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 5 V |
| Product Type | RS-485 Interface IC |
| Factory Pack Quantity | 3000 |
| Subcategory | Interface ICs |
| Unit Weight | 0.001464 oz |
For more information, please refer to datasheet
Documents
| SN55LBC180RSAR Datasheet |
More Information
The SN55LBC180, SN65LBC180 and SN75LBC180 combine a differential line driver and receiver with 3-state outputs and operate from a single 5-V supply. The driver and receiver have active-high and active-low enables, respectively, which can be externally connected to function as a direction control. The driver differential outputs and the receiver differential inputs are connected to separate terminals for full-duplex operation and are designed to present minimum loading to the bus whether disabled or powered off (VCC = 0). These parts feature a wide common-mode voltage range making them suitable for point-to-point or multipoint data-bus applications.
