Description

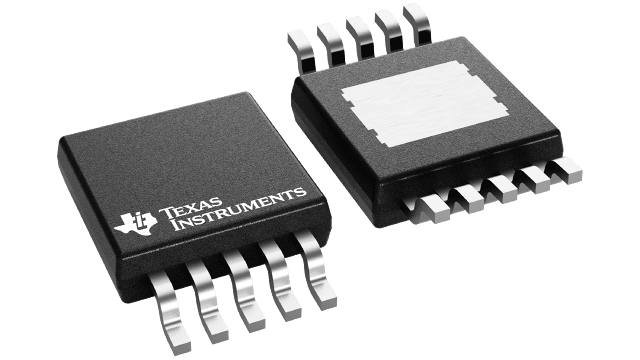

SN6507DGQR Texas Instruments - Yeehing Electronics
Low-emission 36-V push-pull transformer driver with duty cycle control for isolated power supplies
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.63 |
100 — 249 | 2.305 |
250 — 999 | 1.616 |
1,000 + | 0.91 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
SN6507DGQR Datasheet |
More Information
The SN6507 is a high voltage, high frequency push-pull transformer driver providing isolated power in a small solution size. The device comes with the push-pull topology’s benefits of simplicity, low EMI, and flux cancellation to prevent transformer saturation. Further space savings are achieved through duty-cycle control, which reduces component count for wide-input ranges, and by selecting a high switching frequency, reducing the size of the transformer.
