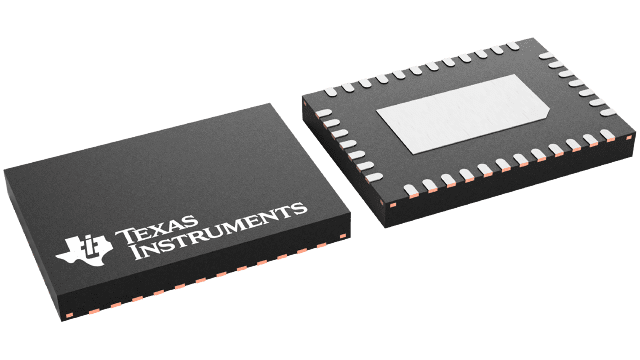

SN65DP141RLJT Texas Instruments - Yeehing Electronics
12-Gbps DP 1.4/ eDP1.4 linear redriver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 7.15 |
| 100 — 249 | 5.829 |
| 250 — 999 | 4.582 |
| 1,000 + | 3.11 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Interface - Signal Buffers, Repeaters |
| RoHS | Y |
| Product | Redrivers |
| Propagation Delay Time | 65 ps |
| Maximum Clock Frequency | 400 kHz |
| Operating Supply Voltage | 2.5 V/3.3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-38 |
| Packaging | Reel |
| Application | - |
| Data Rate | 12 Gb/s |
| Input Type | CML |
| Output Type | CML |
| Series | SN65DP141 |
| Type | Linear Redriver |
| Brand | Texas Instruments |
| Interface Type | 2-Wire, I2C |
| Number of Channels | 4 Channel |
| Development Kit | - |
| Moisture Sensitive | Yes |
| Operating Supply Current | - |
| Pd - Power Dissipation | 697 mW |
| Product Type | Signal Buffers, Repeaters |
| Factory Pack Quantity | 250 |
| Subcategory | Interface ICs |
| Supply Voltage - Max | 3.465 V |
| Supply Voltage - Min | 2.375 V |
| Unit Weight | 0.002363 oz |
For more information, please refer to datasheet
Documents
| SN65DP141RLJT Datasheet |
More Information
The SN65DP141 is an asynchronous, protocol-agnostic, low latency, four-channel linear equalizer optimized for use up to 12 Gbps and compensates for losses due to board traces and cables.
