Texas Instruments
SN65DP149RSBT
SN65DP149RSBT
Couldn't load pickup availability
SN65DP149RSBT Texas Instruments - Yeehing Electronics
3.4-Gbps DP++ 1.1 to HDMI 1.4b retimer -40 to 85C operating temperature
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.62 |
| 100 — 249 | 4.048 |
| 250 — 999 | 2.838 |
| 1,000 + | 1.60 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Display Interface IC |
| RoHS | Y |
| Mounting Style | SMD/SMT |

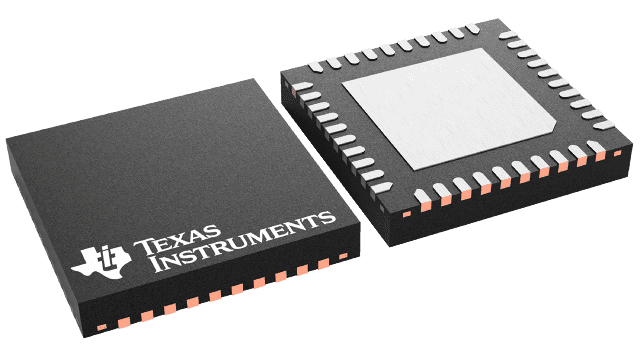

| Package / Case | WQFN-40 |
| Series | SN65DP149 |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Display Interface IC |
| Factory Pack Quantity | 250 |
| Subcategory | Interface ICs |
| Unit Weight | 0.002649 oz |
For more information, please refer to datasheet
Documents
| SN65DP149RSBT Datasheet |
More Information
The SNx5DP149 device is a dual mode DisplayPort to transition-minimized differential signal (TMDS) retimer supporting digital video interface (DVI) 1.0 and high-definition multimedia interface (HDMI) 1.4b output signals. The SNx5DP149 device supports the dual mode standard version 1.1 type 1 and type 2 through the DDC link. The SNx5DP149 device supports data rate up to 3.4-Gbps per data lane to support Ultra HD (4K × 2K / 30-Hz) 8-bits per color high-resolution video and HDTV with 16-bit color depth at 1080p (1920 × 1080 / 60-Hz). The SNx5DP149 device can automatically configure itself as a re-driver at data rates <1 Gbps, or as a retimer at more than this data rate. This feature can be turned off through I2C programming.
