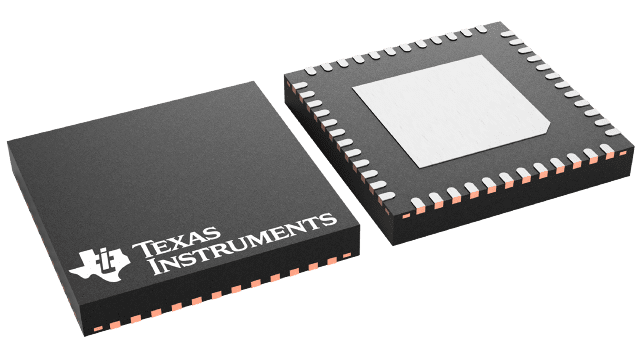

SN65DP159RGZR Texas Instruments - Yeehing Electronics

6-Gbps DP++ 1.1 to HDMI 2.0 retimer 0 to 85C operating temperature

Pricing (USD)

Quantity	Unit Price
1 — 99	5.253
100 — 249	4.283
250 — 999	3.366
1,000 +	2.00

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Interface - Signal Buffers, Repeaters
RoHS	Y
Product	Retimers
Propagation Delay Time	360 ns
Maximum Clock Frequency	400 kHz
Operating Supply Voltage	1.1 V, 3.3 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	VQFN-48
Packaging	Reel
Data Rate	6 Gb/s
Output Current	50 mA
Series	SN65DP159
Type	DP++ to HDMI Retimer
Brand	Texas Instruments
Interface Type	2-Wire, I2C
Number of Channels	2 Channel
Ciss - Input Capacitance	10 pF
Development Kit	DP159RGZEVM
Moisture Sensitive	Yes
Pd - Power Dissipation	435 mW
Product Type	Signal Buffers, Repeaters
Factory Pack Quantity	2500
Subcategory	Interface ICs
Supply Voltage - Max	3.6 V
Supply Voltage - Min	1 V
Unit Weight	0.004035 oz

For more information, please refer to datasheet

Documents

SN65DP159RGZR Datasheet

More Information

The SNx5DP159 device is a dual mode[1] DisplayPort to transition-minimized differential signal (TMDS) retimer supporting digital video interface (DVI) 1.0 and high-definition multimedia interface (HDMI) 1.4b and 2.0b output signals. The SNx5DP159 device supports the dual mode standard version 1.1 type 1 and type 2 through the DDC link or AUX channel. The SNx5DP159 device supports data rate up to 6-Gbps per data lane to support Ultra HD (4K × 2K / 60-Hz) 8-bits per color high-resolution video and HDTV with 16-bit color depth at 1080p (1920 × 1080 / 60-Hz). The SNx5DP159 device can automatically configure itself as a re-driver at data rates <1 Gbps, or as a retimer at more than this data rate. This feature can be turned off through I2C[4] programming.
