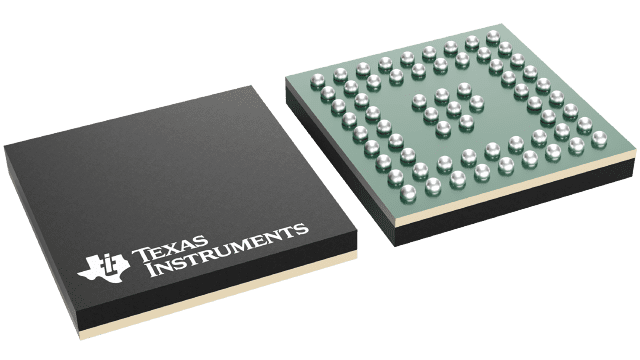

SN65DSI84ZXHR Texas Instruments - Yeehing Electronics
MIPI® DSI bridge to Flatlink™ LVDS single-channel DSI to dual-link LVDS bridge
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.313 |
| 100 — 249 | 2.903 |
| 250 — 999 | 2.035 |
| 1,000 + | 3.43 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| SN65DSI84ZXHR Datasheet |
More Information
The SN65DSI84 DSI to FlatLink™ bridge features a single-channel MIPI® D-PHY receiver front-end configuration with 4 lanes per channel operating at 1 Gbps per lane; a maximum input bandwidth of 4 Gbps. The bridge decodes MIPI® DSI 18bpp RGB666 and 24 bpp RGB888 packets and converts the formatted video data stream to a FlatLink™ compatible LVDS output operating at pixel clocks operating from 25 MHz to 154 MHz, offering a Dual-Link LVDS, Single-Link LVDS interface with four data lanes per link.
