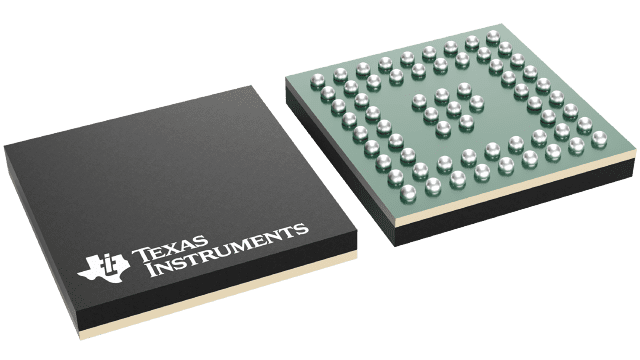

SN65DSI85ZXHR Texas Instruments - Yeehing Electronics
Dual-channel MIPI® DSI to dual-link Flatlink™ LVDS bridge
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 6.315 |
| 100 — 249 | 5.148 |
| 250 — 999 | 4.046 |
| 1,000 + | 2.40 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| SN65DSI85ZXHR Datasheet |
More Information
The SN65DSI85 DSI to FlatLink bridge features a dual-channel MIPI D-PHY receiver front-end configuration with 4 lanes per channel operating at 1 Gbps per lane; a maximum input bandwidth of 8 Gbps. The bridge decodes MIPI DSI 18-bpp RGB666 and 24-bpp RGB888 packets and converts the formatted video data stream to a FlatLink compatible LVDS output operating at pixel clocks operating from 25 MHz to 154 MHz, offering a Dual-Link LVDS, Single-Link LVDS, or two Single-Link LVDS interface(s) with four data lanes per link.
