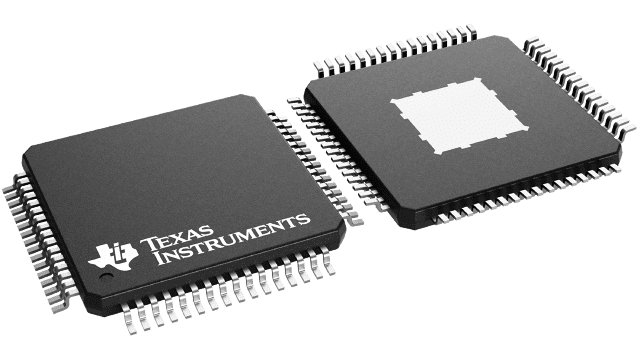

SN65DSI86IPAPQ1 Texas Instruments - Yeehing Electronics
Automotive MIPI® DSI bridge to eDP
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 16.314 |
| 100 — 249 | 14.251 |
| 250 — 999 | 10.988 |
| 1,000 + | 6.88 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LVDS Interface IC |
| RoHS | Y |
| Data Rate | 5400 Mb/s |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTQFP-64 |
| Qualification | AEC-Q100 |
| Packaging | Tube |
| Series | SN65DSI86-Q1 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | LVDS Interface IC |
| Factory Pack Quantity | 160 |
| Subcategory | Interface ICs |
| Unit Weight | 0.010811 oz |
For more information, please refer to datasheet
Documents
| SN65DSI86IPAPQ1 Datasheet |
More Information
The SN65DSI86-Q1 DSI to embedded DisplayPort (eDP) bridge features a dual-channel MIPI D-PHY receiver front-end configuration with four lanes per channel operating at 1.5 Gbps per lane and a maximum input bandwidth of 12 Gbps. The bridge decodes MIPI DSI 18-bpp RGB666 and 24-bpp RGB888 packets and converts the formatted video data stream to a DisplayPort with up to four lanes at either 1.62 Gbps, 2.16 Gbps, 2.43 Gbps, 2.7 Gbps, 3.24 Gbps, 4.32 Gbps, or 5.4 Gbps.
