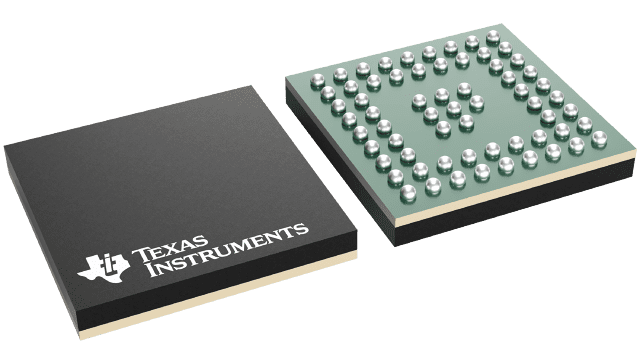

SN65DSI86ZXHR Texas Instruments - Yeehing Electronics
Dual-channel MIPI® DSI to embedded DisplayPort™ (eDP ) bridge
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 7.594 |
100 — 249 | 6.191 |
250 — 999 | 4.866 |
1,000 + | 2.89 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
SN65DSI86ZXHR Datasheet |
More Information
The SN65DSI86 DSI to embedded DisplayPort (eDP) bridge features a dual-channel MIPI D-PHY receiver front-end configuration with four lanes per channel operating at 1.5 Gbps per lane and a maximum input bandwidth of 12 Gbps. The bridge decodes MIPI DSI 18-bpp RGB666 and 24-bpp RGB888 packets and converts the formatted video data stream to a DisplayPort with up to four lanes at either 1.62 Gbps, 2.16 Gbps, 2.43 Gbps, 2.7 Gbps, 3.24 Gbps, 4.32 Gbps, or 5.4 Gbps.
