Texas Instruments

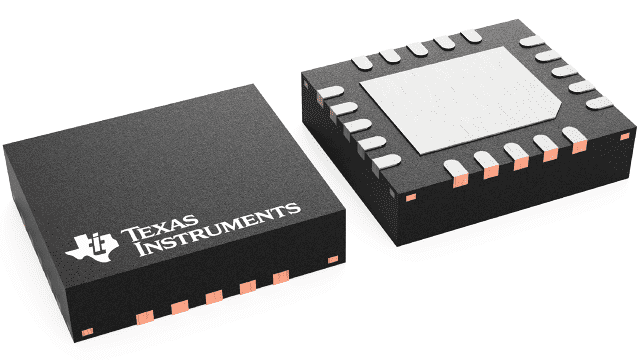

SN65HVD101RGBT
SN65HVD101RGBT
Regular price
$1.79 USD
Regular price
Sale price
$1.79 USD
Unit price
per
Couldn't load pickup availability
SN65HVD101RGBT Texas Instruments - Yeehing Electronics
IO-Link PHY for device nodes
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.703 |
| 100 — 249 | 3.834 |
| 250 — 999 | 3.014 |
| 1,000 + | 1.79 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Sensor Interface |
| RoHS | Y |
| Type | IO-Link Device Transceiver |
| Interface Type | IO-Link, 3-Wire |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 3 V |
| Operating Supply Current | 33 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-20 |
| Packaging | Reel |
| Features | Reverse polarity protection, Configurable current limiter, Remote wakeup, Integrated LDO (3.3 V or |
| Product | IO-Link Transceivers |
| Series | SN65HVD101 |
| Brand | Texas Instruments |
| Development Kit | SN65HVD101EVM |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 3.3 V, 5 V |
| Product Type | Sensor Interface |
| Propagation Delay Time | 2000 ns |
| Factory Pack Quantity | 250 |
| Subcategory | Interface ICs |
| Unit Weight | 0.002469 oz |
For more information, please refer to datasheet
Documents
| SN65HVD101RGBT Datasheet |
More Information
The SN65HVD101 and ‘HVD102 IO-Link PHYs implement the IO-Link interface for industrial point-to-point communication. When the device is connected to an IO-Link master through a 3-wire interface, the master can initiate communication and exchange data with the remote node while the SN65HVD10X acts as a complete physical layer for the communication.
