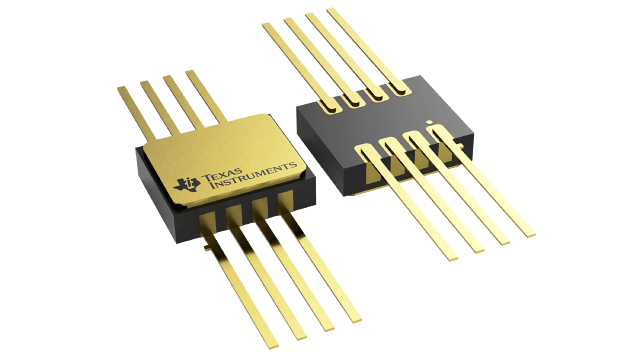

SN65HVD11SHKJ Texas Instruments - Yeehing Electronics

High Temperature 3.3-V RS-485 Transceiver

Pricing (USD)

Quantity	Unit Price
1 — 99	113.077
100 — 249	109.676
250 — 999	91.311
1,000 +	59.51

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	RS-485 Interface IC
RoHS	N
Mounting Style	SMD/SMT
Package / Case	CFP-8
Series	SN65HVD11-HT
Function	Transceiver
Data Rate	10 Mb/s
Number of Drivers	1 Driver
Number of Receivers	1 Receiver
Duplex	Half Duplex
Supply Voltage - Max	3.6 V
Supply Voltage - Min	3 V
Operating Supply Current	18 mA
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 210 C
Packaging	Tube
Product	RS-485 Transceivers
Brand	Texas Instruments
Shutdown	No Shutdown
Operating Supply Voltage	3.3 V
Product Type	RS-485 Interface IC
Propagation Delay Time	25 ns
Factory Pack Quantity	1
Subcategory	Interface ICs

For more information, please refer to datasheet

Documents

SN65HVD11SHKJ Datasheet

More Information

The SN65HVD11-HT device combines a 3-state differential line driver and differential input line receiver that operates with a single 3.3-V power supply. It is designed for balanced transmission lines and meets or exceeds ANSI TIA/EIA-485-A and ISO 8482:1993, with the exception that the thermal shutdown is removed. This differential bus transceiver is a monolithic integrated circuit designed for bidirectional data communication on multipoint bus-transmission lines. The driver and receiver have active-high and active-low enables, respectively, that can be externally connected together to function as direction control.
