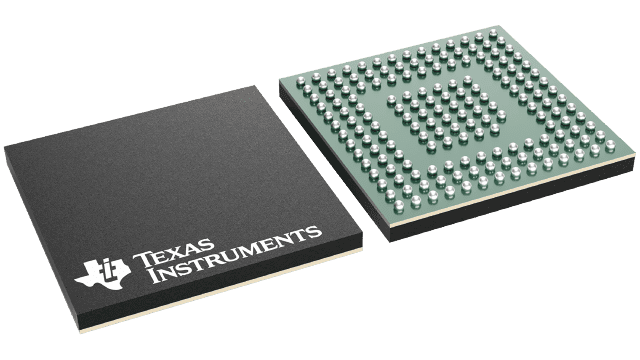

SN65LVCP114ZJA Texas Instruments - Yeehing Electronics
14.2-Gbps quad mux, linear-redriver with signal conditioning
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 24.235 |
| 100 — 249 | 21.542 |
| 250 — 999 | 17.709 |
| 1,000 + | 11.09 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LVDS Interface IC |
| RoHS | Y |
| Type | Mux Buffer |
| Number of Drivers | 2 Driver, 4 Driver |
| Number of Receivers | 4 Receiver, 8 Receiver |
| Data Rate | 14.2 Gb/s |
| Input Type | CML |
| Output Type | CML |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | nFBGA-167 |
| Packaging | Tray |
| Series | SN65LVCP114 |
| Brand | Texas Instruments |
| Development Kit | SN65LVCP114EVM |
| Moisture Sensitive | Yes |
| Operating Supply Current | 560 mA |
| Operating Supply Voltage | 2.5 V, 3.3 V |
| Pd - Power Dissipation | 150 mW |
| Product Type | LVDS Interface IC |
| Factory Pack Quantity | 160 |
| Subcategory | Interface ICs |
For more information, please refer to datasheet
Documents
| SN65LVCP114ZJA Datasheet |
More Information
The SN65LVCP114 device is an asynchronous, protocol-agnostic, low-latency QUAD mux, linear-redriver optimized for use in systems operating at up to 14.2 Gbps. The device linearly compensates for channel loss in backplane and active-cable applications. The architecture of SN65LVCP114 linear-redriver is designed to work effectively with ASIC or FPGA products implementing digital equalization using decision feedback equalizer (DFE) technology. The SN65LVCP114 mux, linear-redriver preserves the integrity (composition) of the received signal, ensuring optimum DFE and system performance. The SN65LVCP114 provides a low-power mux-demux, linear-redriver solution while at the same time extending the effectiveness of DFE.
