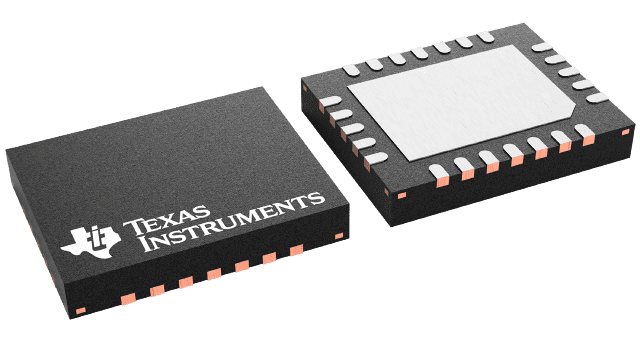

SN65LVCP1412RLHT Texas Instruments - Yeehing Electronics

14.2-Gbps dual channel, dual mode linear equalizer

Pricing (USD)

Quantity	Unit Price
1 — 99	13.147
100 — 249	11.484
250 — 999	8.855
1,000 +	5.54

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Equalizers
RoHS	Y
Package / Case	WQFN-24
Operating Supply Voltage	2.5 V, 3.3 V
Operating Supply Current	0 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Series	SN65LVCP1412
Packaging	Reel
Operating Temperature Range	- 40 C to + 85 C
Brand	Texas Instruments
Moisture Sensitive	Yes
Number of Drivers	2 Driver
Number of Receivers	2 Receiver
Product Type	Equalizers
Factory Pack Quantity	250
Subcategory	Equalizers
Unit Weight	0.002131 oz

For more information, please refer to datasheet

Documents

SN65LVCP1412RLHT Datasheet

More Information

The SN65LVCP1412 is an asynchronous, protocol-agnostic, low latency, two-channel linear equalizer optimized for use up to 14.2Gbps and compensates for losses in backplane or active cable applications. The architecture of SN65LVCP1412 is designed to work with an ASIC or a FPGA with digital equalization employing Decision Feedback Equalizers (DFE). SN65LVCP1412 linear equalizer preserves the shape of the transmitted signal ensuring optimum DFE performance. SN65LVCP1412 provides a low power solution while at the same time extending the effectiveness of DFE.
