Texas Instruments
SN65LVCP1414RLJR
SN65LVCP1414RLJR
Regular price
$6.16 USD
Regular price
Sale price
$6.16 USD
Unit price
per
Couldn't load pickup availability

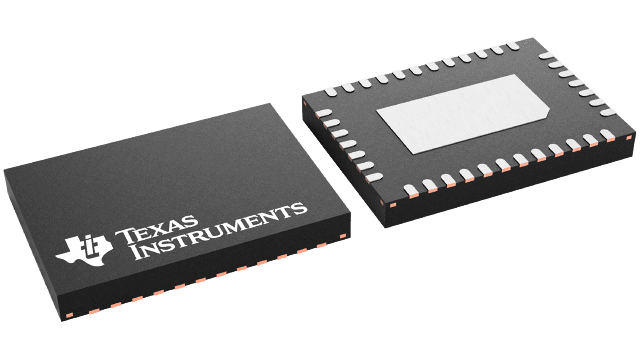

SN65LVCP1414RLJR Texas Instruments - Yeehing Electronics
14.2-Gbps quad channel, dual mode linear equalizer
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 14.608 |
| 100 — 249 | 12.76 |
| 250 — 999 | 9.838 |
| 1,000 + | 6.16 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Equalizers |
| RoHS | Y |
| Package / Case | WQFN-38 |
| Operating Supply Voltage | 2.5 V, 3.3 V |
| Operating Supply Current | 0 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | SN65LVCP1414 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 85 C |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Number of Drivers | 4 Driver |
| Number of Receivers | 4 Receiver |
| Product Type | Equalizers |
| Factory Pack Quantity | 3000 |
| Subcategory | Equalizers |
For more information, please refer to datasheet
Documents
| SN65LVCP1414RLJR Datasheet |
More Information
The SN65LVCP1414 is an asynchronous, protocol-agnostic, low latency, four-channel linear equalizer optimized for use up to 14.2Gbps and compensates for losses in backplane or active cable applications. The architecture of the SN65LVCP1414 is designed to work with an ASIC or FPGA with digital equalization employing Decision Feedback Equalizers (DFE). The SN65LVCP1414 linear equalizer preserves the shape of the transmitted signal ensuring optimum DFE performance. The SN65LVCP1414 provides a low power solution while at the same time extending the effectiveness of DFE.
