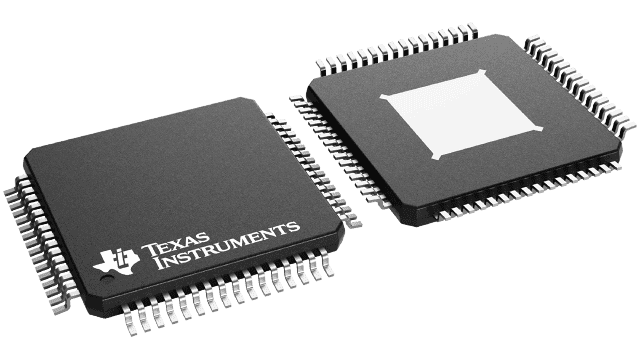

SN65LVCP408PAPT Texas Instruments - Yeehing Electronics

8x8 4.25-Gbps crosspoint switch

Pricing (USD)

Quantity	Unit Price
1 — 99	21.236
100 — 249	18.877
250 — 999	15.518
1,000 +	9.72

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog & Digital Crosspoint ICs
RoHS	Y
Series	SN65LVCP408
Product	Digital Crosspoint Switches
Configuration	8 x 8
Data Rate	4.25 Gb/s
Input Type	CML
Output Type	VML
Operating Supply Voltage	3.3 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	HTQFP-64
Packaging	Reel
Height	1 mm
Length	10 mm
Supply Type	Single
Width	10 mm
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	Analog & Digital Crosspoint ICs
Factory Pack Quantity	250
Subcategory	Communication & Networking ICs
Supply Voltage - Max	3.465 V
Supply Voltage - Min	3.135 V
Unit Weight	0.009108 oz

For more information, please refer to datasheet

Documents

SN65LVCP408PAPT Datasheet

More Information

The SN65LVCP408 is a 8 × 8 non-blocking crosspoint switch in a flow-through pin-out allowing for ease in PCB layout. VML signaling is used to achieve a high-speed data throughput while using low power. Each of the output drivers includes a 8:1 multiplexer to allow any input to be routed to any output. Internal signal paths are fully differential to achieve the high signaling speeds while maintaining low signal skews. The SN65LVCP408 incorporates 100- termination resistors for those applications where board space is a premium. Built-in transmit pre-emphasis and receive equalization for superior signal integrity performance.
