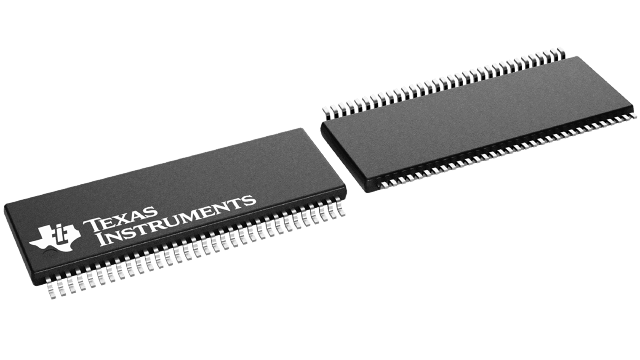

SN65LVDM1676DGG Texas Instruments - Yeehing Electronics

16-channel LVDM transceiver

Pricing (USD)

Quantity	Unit Price
1 — 99	11.394
100 — 249	9.953
250 — 999	7.674
1,000 +	4.80

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LVDS Interface IC
RoHS	Y
Type	Transceiver
Number of Drivers	16 Driver
Number of Receivers	16 Receiver
Data Rate	650 Mb/s, 250 Mb/s
Input Type	LVDM, LVTTL
Output Type	LVDM, LVTTL
Supply Voltage - Max	3.6 V
Supply Voltage - Min	3 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	TSSOP-64
Packaging	Tube
Series	SN65LVDM1676
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Current	175 mA
Operating Supply Voltage	3.3 V
Product Type	LVDS Interface IC
Factory Pack Quantity	25
Subcategory	Interface ICs
Unit Weight	0.009263 oz

For more information, please refer to datasheet

Documents

SN65LVDM1676DGG Datasheet

More Information

The SN65LVDM1676 and SN65LVDM1677 (integrated termination) are sixteen differential line transmitters or receivers (tranceivers) that use low-voltage differential signaling (LVDS) to achieve signaling rates up to 200 Mbps per transceiver configured as a receiver and up to 650 Mbps per transceiver configured as a transmitter. These products are similar to TIA/EIA-644 standard compliant devices (SN65LVDS) counterparts except that the output current of the drivers are doubled. This modification provides a minimum differential output voltage magnitude of 247 mV into a 50- load and allows double-terminated lines and half-duplex operation. The receivers detect a voltage difference of 100 mV with up to 1 V of ground potential difference between a transmitter and receiver.
