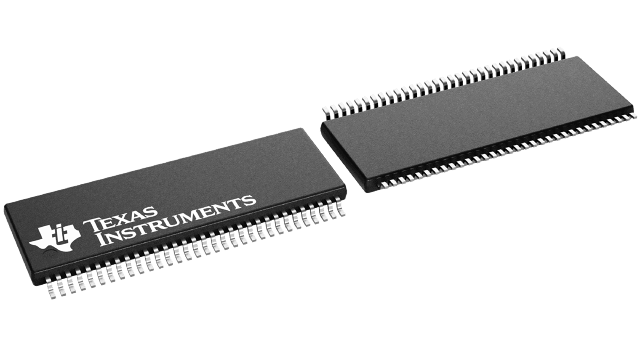

SN65LVDM1677DGG Texas Instruments - Yeehing Electronics
16-channel LVDM transceiver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 11.014 |
| 100 — 249 | 9.621 |
| 250 — 999 | 7.418 |
| 1,000 + | 4.64 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LVDS Interface IC |
| RoHS | Y |
| Type | Transceiver |
| Number of Drivers | 16 Driver |
| Number of Receivers | 16 Receiver |
| Data Rate | 650 Mb/s, 250 Mb/s |
| Input Type | LVDM, LVTTL |
| Output Type | LVDM, LVTTL |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | TSSOP-64 |
| Packaging | Tube |
| Series | SN65LVDM1677 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 175 mA |
| Operating Supply Voltage | 3.3 V |
| Product Type | LVDS Interface IC |
| Factory Pack Quantity | 25 |
| Subcategory | Interface ICs |
| Unit Weight | 0.009263 oz |
For more information, please refer to datasheet
Documents
| SN65LVDM1677DGG Datasheet |
More Information
The SN65LVDM1676 and SN65LVDM1677 (integrated termination) are sixteen differential line transmitters or receivers (tranceivers) that use low-voltage differential signaling (LVDS) to achieve signaling rates up to 200 Mbps per transceiver configured as a receiver and up to 650 Mbps per transceiver configured as a transmitter. These products are similar to TIA/EIA-644 standard compliant devices (SN65LVDS) counterparts except that the output current of the drivers are doubled. This modification provides a minimum differential output voltage magnitude of 247 mV into a 50- load and allows double-terminated lines and half-duplex operation. The receivers detect a voltage difference of 100 mV with up to 1 V of ground potential difference between a transmitter and receiver.
