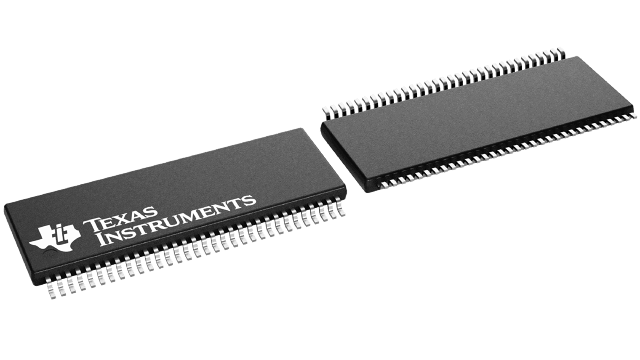

SN65LVDS117DGGR Texas Instruments - Yeehing Electronics
Dual 8-port LVDS repeater
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 8.799 |
100 — 249 | 7.173 |
250 — 999 | 5.638 |
1,000 + | 3.35 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | LVDS Interface IC |
RoHS | Y |
Type | Repeater/Translator, Buffer |
Number of Drivers | 16 Driver |
Number of Receivers | 2 Receiver |
Data Rate | 400 Mb/s |
Input Type | LVDS |
Output Type | LVDS |
Supply Voltage - Max | 3.6 V |
Supply Voltage - Min | 3 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | TSSOP-64 |
Packaging | Reel |
Height | 1.15 mm |
Input Voltage MAX | 0.1 V |
Length | 17 mm |
Series | SN65LVDS117 |
Width | 6.1 mm |
Brand | Texas Instruments |
Input Voltage MIN | - 0.1 V |
Maximum Output Voltage | 0.454 V |
Moisture Sensitive | Yes |
Operating Supply Current | 122 mA |
Operating Supply Voltage | 3.3 V |
Pd - Power Dissipation | 2094 mW |
Product Type | LVDS Interface IC |
Propagation Delay Time | 4.5 ns |
Factory Pack Quantity | 2000 |
Subcategory | Interface ICs |
Unit Weight | 0.009263 oz |
For more information, please refer to datasheet
Documents
SN65LVDS117DGGR Datasheet |
More Information
The SN65LVDS109 and SN65LVDS117 are configured as two identical banks, each bank having one differential line receiver connected to either four ('109) or eight ('117) differential line drivers. The outputs are arranged in pairs having one output from each of the two banks. Individual output enables are provided for each pair of outputs and an additional enable is provided for all outputs.
