Texas Instruments

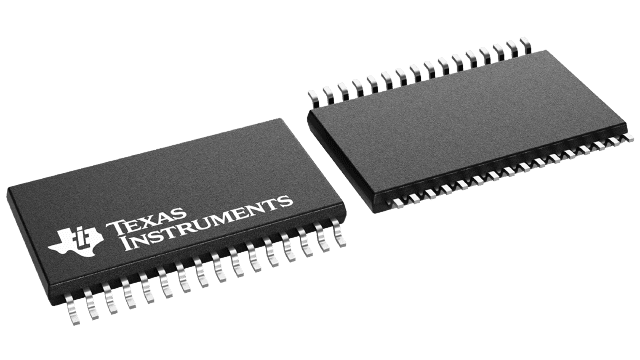

SN65LVDS151DA
SN65LVDS151DA
Couldn't load pickup availability
SN65LVDS151DA Texas Instruments - Yeehing Electronics
MuxIt ™ serializer-transmitter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 7.537 |
| 100 — 249 | 6.144 |
| 250 — 999 | 4.829 |
| 1,000 + | 2.87 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LVDS Interface IC |
| RoHS | Y |
| Type | Serializer |
| Number of Drivers | 1 Driver |
| Number of Receivers | 10 Receiver |
| Data Rate | 200 Mb/s |
| Input Type | CMOS, TTL |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | TSSOP-32 |
| Packaging | Tube |
| Height | 1.15 mm |
| Input Voltage MAX | 0.1 V |
| Length | 11 mm |
| Series | SN65LVDS151 |
| Width | 6.2 mm |
| Brand | Texas Instruments |
| Development Kit | MUXIT-EVM |
| Input Voltage MIN | - 0.1 V |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 3.3 V |
| Pd - Power Dissipation | 1453 mW |
| Product Type | LVDS Interface IC |
| Propagation Delay Time | 5.8 ns |
| Factory Pack Quantity | 46 |
| Subcategory | Interface ICs |
| Unit Weight | 0.006113 oz |
For more information, please refer to datasheet
Documents
| SN65LVDS151DA Datasheet |
More Information
MuxIt is a family of general-purpose, multiple-chip building blocks for implementing parallel data serializers and deserializers. The system allows for wide parallel data to be transmitted through a reduced number of transmission lines over distances greater than can be achieved with a single-ended (e.g., LVTTL or LVCMOS) data interface. The number of bits multiplexed per transmission line is user-selectable and allows for higher transmission efficiencies than with existing fixed ratio solutions. MuxIt utilizes the LVDS (TIA/EIA-644-A) low voltage differential signaling technology for communications between the data source and data destination.
