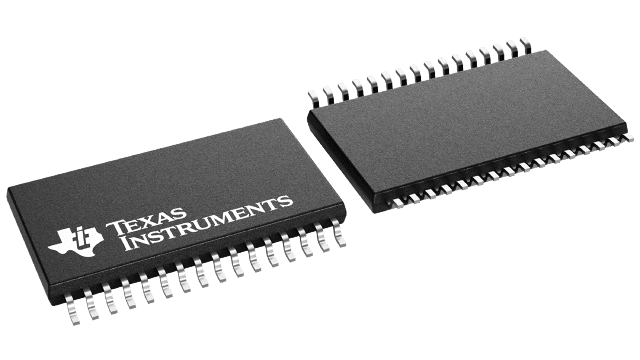

SN65LVDS151DAR Texas Instruments - Yeehing Electronics
MuxIt ™ serializer-transmitter
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 6.42 |
100 — 249 | 5.234 |
250 — 999 | 4.114 |
1,000 + | 2.44 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | LVDS Interface IC |
RoHS | Y |
Type | Serializer |
Number of Drivers | 1 Driver |
Number of Receivers | 10 Receiver |
Data Rate | 200 Mb/s |
Input Type | CMOS, TTL |
Supply Voltage - Max | 3.6 V |
Supply Voltage - Min | 3 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | TSSOP-32 |
Packaging | Reel |
Height | 1.15 mm |
Input Voltage MAX | 0.1 V |
Length | 11 mm |
Series | SN65LVDS151 |
Width | 6.2 mm |
Brand | Texas Instruments |
Development Kit | MUXIT-EVM |
Input Voltage MIN | - 0.1 V |
Moisture Sensitive | Yes |
Operating Supply Voltage | 3.3 V |
Pd - Power Dissipation | 1453 mW |
Product Type | LVDS Interface IC |
Propagation Delay Time | 5.8 ns |
Factory Pack Quantity | 2000 |
Subcategory | Interface ICs |
Unit Weight | 0.006113 oz |
For more information, please refer to datasheet
Documents
SN65LVDS151DAR Datasheet |
More Information
MuxIt is a family of general-purpose, multiple-chip building blocks for implementing parallel data serializers and deserializers. The system allows for wide parallel data to be transmitted through a reduced number of transmission lines over distances greater than can be achieved with a single-ended (e.g., LVTTL or LVCMOS) data interface. The number of bits multiplexed per transmission line is user-selectable and allows for higher transmission efficiencies than with existing fixed ratio solutions. MuxIt utilizes the LVDS (TIA/EIA-644-A) low voltage differential signaling technology for communications between the data source and data destination.
