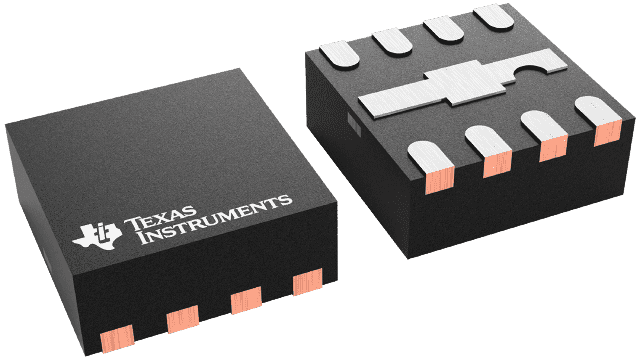

SN65LVDS17DRFR Texas Instruments - Yeehing Electronics
2.5-V/3.3-V oscillator gain stage/buffer with enable
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 4.256 |
100 — 249 | 3.729 |
250 — 999 | 2.615 |
1,000 + | 1.47 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | LVDS Interface IC |
RoHS | Y |
Type | Oscillator Gain Stage Buffer |
Number of Drivers | 1 Driver |
Number of Receivers | 1 Receiver |
Data Rate | 4000 Mb/s |
Input Type | Differential |
Output Type | LVDS |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | WSON-8 |
Packaging | Reel |
Height | 0.53 mm |
Length | 2 mm |
Series | SN65LVDS17 |
Width | 2 mm |
Brand | Texas Instruments |
Development Kit | SN65LVDS17EVM |
Operating Supply Current | 48 mA |
Product Type | LVDS Interface IC |
Factory Pack Quantity | 3000 |
Subcategory | Interface ICs |
Unit Weight | 0.000384 oz |
For more information, please refer to datasheet
Documents
SN65LVDS17DRFR Datasheet |
More Information
These four devices are high-frequency oscillator gain stages supporting both LVPECL or LVDS on the high gain outputs in 3.3-V or 2.5-V systems. Additionally, provides the option of both single-ended input (PECL levels on the SN65LVx16) and fully differential inputs on the SN65LVx17.
