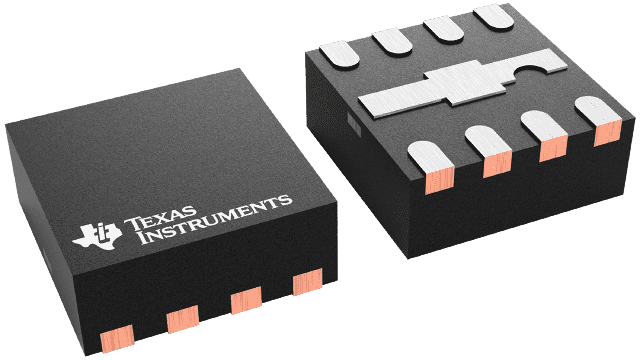

SN65LVDS19DRFT Texas Instruments - Yeehing Electronics
2.5-V/3.3-V oscillator gain stage/buffer with enable
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 3.652 |
100 — 249 | 3.2 |
250 — 999 | 2.244 |
1,000 + | 1.27 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | LVDS Interface IC |
RoHS | Y |
Type | Oscillator Gain Stage Buffer |
Number of Drivers | 1 Driver |
Number of Receivers | 1 Receiver |
Data Rate | 2000 Mb/s |
Input Type | Differential |
Output Type | LVDS |
Supply Voltage - Max | 3.6 V |
Supply Voltage - Min | 2.375 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | WSON-8 |
Packaging | Reel |
Height | 0.53 mm |
Length | 2 mm |
Series | SN65LVDS19 |
Width | 2 mm |
Brand | Texas Instruments |
Operating Supply Current | 36 mA |
Operating Supply Voltage | 2.375 V to 3.6 V |
Pd - Power Dissipation | 161 mW |
Product Type | LVDS Interface IC |
Propagation Delay Time | 340 ps |
Factory Pack Quantity | 250 |
Subcategory | Interface ICs |
Unit Weight | 0.000384 oz |
For more information, please refer to datasheet
Documents
SN65LVDS19DRFT Datasheet |
More Information
These four devices are high frequency oscillator gain stages supporting both LVPECL or LVDS on the high gain outputs in 3.3-V or 2.5-V systems. Additionally, provides the option of both single-ended input (PECL levels on the SN65LVx18) and fully differential inputs on the SN65LVx19.
