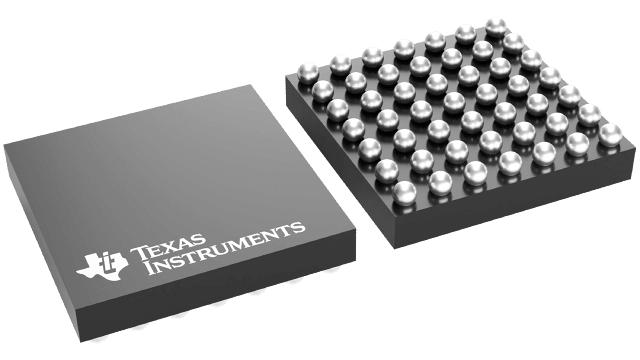

SN65LVDS311YFFR Texas Instruments - Yeehing Electronics

Programmable 27-bit display serial interface transmitter

Pricing (USD)

Quantity	Unit Price
1 — 99	3.4
100 — 249	2.772
250 — 999	2.179
1,000 +	1.29

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Serializers & Deserializers - Serdes
RoHS	Y
Type	Serializer
Data Rate	566 Mb/s
Input Type	CMOS
Output Type	SubLVDS
Number of Inputs	27 Input
Number of Outputs	3 Output
Operating Supply Voltage	1.65 V to 1.95 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	DSBGA-49
Packaging	Reel
Series	SN65LVDS311
Brand	Texas Instruments
Product Type	Serializers & Deserializers - Serdes
Factory Pack Quantity	3000
Subcategory	Interface ICs
Unit Weight	0.000321 oz

For more information, please refer to datasheet

Documents

SN65LVDS311YFFR Datasheet

More Information

The SN65LVDS311 serializer transmits 27 parallel input data over 1, 2, or 3 serial output links. The device pinout is optimized to interface with the OMAP3630 application processor. The device loads a shift register with the 24 pixel bits and 3 control bits from the parallel CMOS input interface. The data are latched into the device by the pixel clock, PCLK. In addition to the 27 bits, the device adds a parity bit and two reserved bits for a total number of 30 serial bits. The parity bit allows a receiver to detect single-bit errors. Odd parity is implemented.
