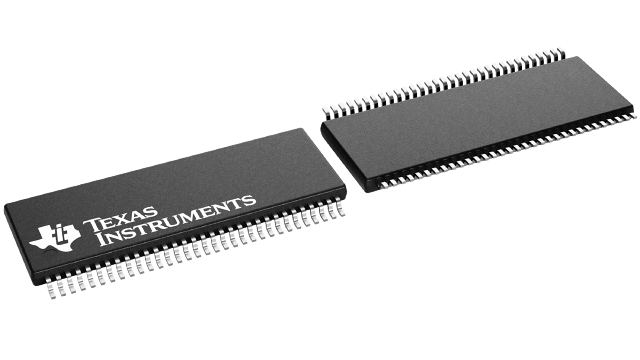

SN65LVDS386DGG Texas Instruments - Yeehing Electronics

16-channel LVDS receiver

Pricing (USD)

Quantity	Unit Price
1 — 99	9.715
100 — 249	7.92
250 — 999	6.225
1,000 +	3.70

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

SN65LVDS386DGG Datasheet

More Information

This family of 4-, 8-, or 16-differential line receivers (with optional integrated termination) implements the electrical characteristics of low-voltage differential signaling (LVDS). This signaling technique lowers the output voltage levels of 5-V differential standard levels (such as EIA/TIA-422B) to reduce the power, increase the switching speeds, and allow operation with a 3-V supply rail.
