Texas Instruments

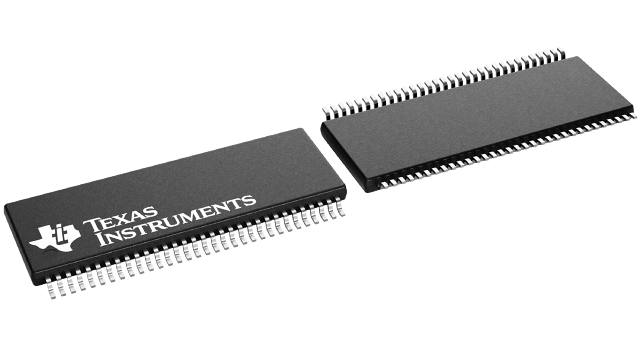

SN65LVDS387DGG
SN65LVDS387DGG
Regular price
$3.82 USD
Regular price
Sale price
$3.82 USD
Unit price
per
Couldn't load pickup availability
SN65LVDS387DGG Texas Instruments - Yeehing Electronics
16-channel LVDS driver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 10.039 |
| 100 — 249 | 8.184 |
| 250 — 999 | 6.433 |
| 1,000 + | 3.82 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LVDS Interface IC |
| RoHS | Y |
| Type | Driver |
| Number of Drivers | 16 Driver |
| Data Rate | 630 Mb/s |
| Input Type | LVTTL |
| Output Type | LVDS |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | TSSOP-64 |
| Packaging | Tube |
| Series | SN65LVDS387 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 95 mA |
| Operating Supply Voltage | 3.6 V |
| Product Type | LVDS Interface IC |
| Factory Pack Quantity | 25 |
| Subcategory | Interface ICs |
| Unit Weight | 0.009263 oz |
For more information, please refer to datasheet
Documents
| SN65LVDS387DGG Datasheet |
More Information
This family of 4, 8, and 16 differential line drivers implements the electrical characteristics of low-voltage differential signaling (LVDS). This signaling technique lowers the output voltage levels of 5-V differential standard levels (such as EIA/TIA-422B) to reduce the power, increase the switching speeds, and allow operation with a 3.3-V supply rail. Any of the 16 current-mode drivers will deliver a minimum differential output voltage magnitude of 247 mV into a 100-Ω load when enabled.
